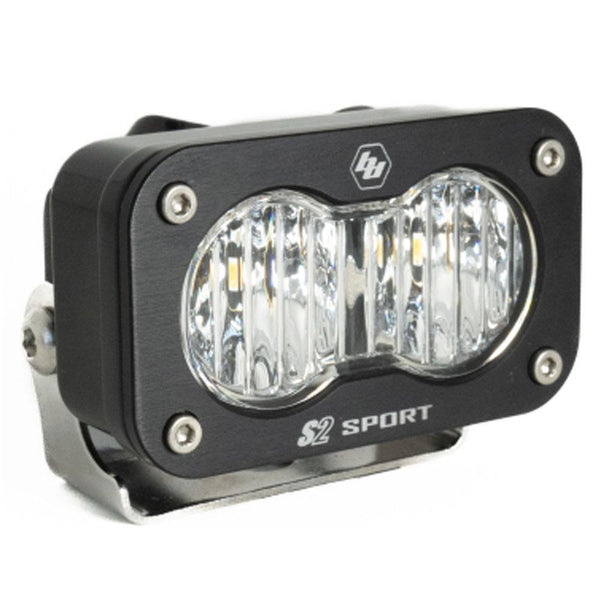

Baja Designs S2 Sport Flush Mount LED Pod, Clear Wide Cornering, Black Housing, Single, No Harness

The Baja Designs 541005 S2 Sport is a single flush-mount auxiliary LED light pod with a clear Wide Cornering lens and black housing. Its compact body provides a flush-mount option for a custom auxiliary-light installation, with a manufacturer-listed output of 1,581 lumens. Stainless-steel mounting hardware is included; a wiring harness is not.

Configuration and included contents

• One S2 Sport flush-mount LED light pod, not a pair
• Clear Wide Cornering lens
• Black powder-coated cast aluminum housing
• Two LEDs
• Stainless-steel mounting hardware included
• No wiring harness included
• Universal application; confirm mounting space and electrical compatibility
• Manufacturer part number / store SKU: 541005

The general S2 Sport marketing description discusses fog, cornering, rack and reverse applications. This exact part is a clear Wide Cornering flush-mount light, not a Driving/Combo or Work/Scene model and not a complete reverse-light kit. Consult the manufacturer's installation instructions before drilling or cutting a mounting surface.

Part-specific specifications

• Listed brightness: 1,581 lumens for the single pod
• Power: 12.42W
• Current draw: 0.9A
• LED quantity: two
• Lighting-modes field: Beam
• Listed product dimensions: 2.93 inches long × 1.76 inches high × 1.68 inches deep
• Product weight: 0.5 lb
• Average rated life: 49,930 hours
• Built-in overvoltage protection

The listed product dimensions are not a cutout or drilling template. No operating voltage range, beam-distance figure or additional high/low mode is supplied in this exact record.

Construction and durability

• Powder-coated cast aluminum housing and bezel
• Hardcoated polycarbonate lens
• Stainless-steel mounting hardware
• Manufacturer-listed durability: exceeds MIL-STD810G testing
• Manufacturer-listed impact resistance: IK10
• Manufacturer-listed water resistance: IP69K, described as waterproof up to 9 feet and pressure washable

Wiring and optional accessories

No wiring harness is included. The compatible-products list includes 640117 On/Off wiring, 640093 upfitter wiring, splitters, 640164 Hi/Low wiring and a 640165 10-foot extension. These are separate wiring options, not supplied contents. A Hi/Low harness appearing in the accessory list does not establish built-in high/low modes for this light. Follow the manufacturer's installation instructions for the appropriate connections and controls; no automatic reverse activation is specified.

Replacement lens kits and anti-theft hardware are separately listed accessories or associated products. Their alternative colors and patterns do not change the clear Wide Cornering configuration supplied with this part.

Manufacturer coverage

Baja Designs lists a Limited Lifetime Warranty and a 30-day money-back Satisfaction Guarantee, subject to its terms.
