Baja Designs XL80 LED Pod Pair, Clear Wide Cornering, Black Housing, Wiring Harness Included

The Baja Designs 677805 XL80 package includes two clear Wide Cornering LED pods, a wiring harness and mounting hardware. Each black-housing light uses four Cree LEDs and carries a manufacturer-listed output of 9,022 raw lumens. This universal pair is intended for a custom off-road auxiliary-light installation.

Configuration and included contents

• Two complete XL80 LED light pods
• Clear Wide Cornering lenses
• Black hard-anodized and powder-coated cast aluminum housings
• Wiring harness included
• Mounting hardware included; stainless-steel material listed
• Universal application; confirm mounting space and electrical compatibility
• Manufacturer part number / store SKU: 677805

The exact-part extended description and beam-pattern field both identify Wide Cornering, not Spot or Driving/Combo. General references to high-speed spot reflectors describe the XL80's optical technology and do not change this package's supplied Wide Cornering configuration. This is a pair of complete lights, not replacement lenses.

Specifications per light

• Manufacturer-listed output: 9,022 raw lumens per pod
• Power: 75.9W per pod
• Current draw: 5.5A per pod
• Four Cree LEDs per light
• Forward-projecting LED lighting
• Lighting modes: High Beam / Dimming Feature (20%)
• Listed dimensions: 4.43 inches long × 4.43 inches high × 3.65 inches deep per pod
• Product weight: 2.45 lb per pod
• Average rated life: 49,930 hours
• Built-in overvoltage protection

The brightness, power and current figures above apply to each light, not the whole pair. The record lists a 20% dimming feature without separate dimmed lumen, wattage or current figures, so none are calculated here. No operating voltage range or measured beam-distance figure is supplied in this exact-part record.

Manufacturer performance comparison

Baja Designs describes next-generation LED technology and claims 18% greater distance and increased intensity compared with its previous model. This is a manufacturer comparison with a prior model, not an absolute distance measurement or a comparison with every other light.

Wiring and installation

A wiring harness is explicitly included with this two-light package. The record does not identify its part number, length or switch arrangement. The listed dimming capability does not establish which dimming controls are supplied. Follow the manufacturer's installation instructions for mounting, electrical connections and operation.

The separate compatible-products list names 640094 upfitter wiring, 640119 Hi/Low wiring, 660060 Off Road Mode Switch wiring and 613608 and 613609 splitters. These are accessory compatibility listings, not identification of the included harness or additional confirmed package contents.

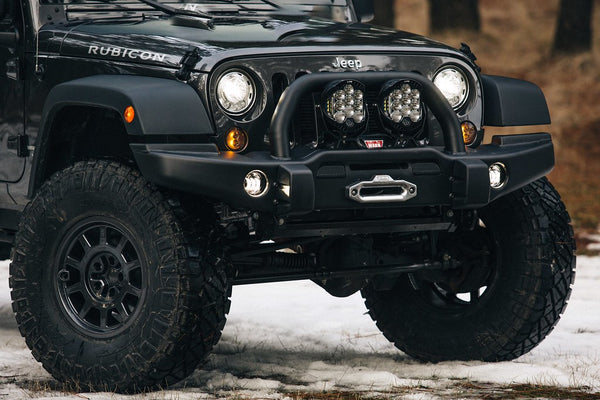

Baja Designs describes the XL80 as an off-road lighting option for trucks, vans, UTVs and motorcycles. Those general examples do not establish direct-fit vehicle brackets or vehicle-specific wiring. Confirm your mounting layout and control requirements before installation.

Construction and durability

• Hard-anodized and powder-coated cast aluminum housings
• Powder-coated cast aluminum bezels
• Hardcoated polycarbonate lenses
• Stainless-steel mounting hardware
• Manufacturer-listed durability: exceeds MIL-STD810G testing
• Manufacturer-listed impact resistance: IK10
• Manufacturer-listed water resistance: IP69K, described as waterproof up to 9 feet and pressure washable

Optional accessories and manufacturer coverage

Rock guards, amber and clear covers, replacement lens kits and anti-theft hardware are separately listed accessories or associated products, not additional confirmed package contents. They do not change the supplied clear Wide Cornering lenses.

Baja Designs lists a Limited Lifetime Warranty and a 30-day money-back Satisfaction Guarantee, subject to its terms.

Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
