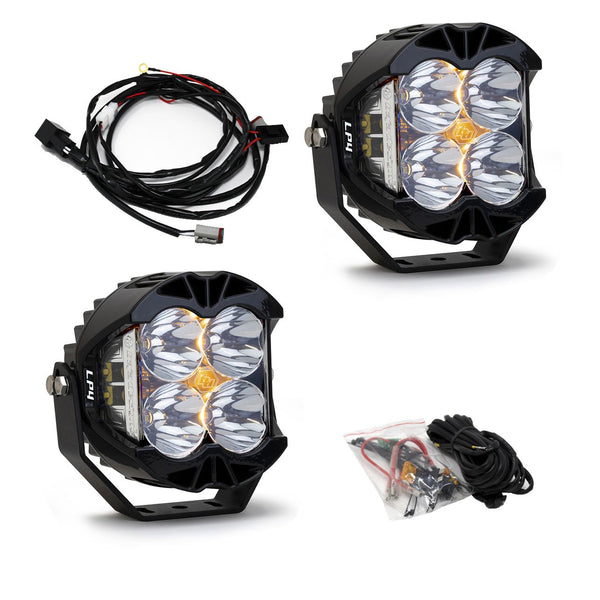

Baja Designs - 297801 - LP4 Pro Spot Clear LED Auxiliary Light Pod Pair

The LP4 is the smallest variant in the LP line up but maintains all of the power and features of its siblings. The LP4 features a total of 8,750 lumens and a 200 degree spread of useable LED light. This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT). To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance. With an amber day-time running light, the LP4 will fulfill all your lighting needs.

• Satisfaction Guarantee -30-Day Money Back Guarantee
• Limited Lifetime Warranty -Complete Purchase Protection
• uService -Replaceable Lenses And Optics
• ClearView -All The Light, Right Where You Need It
• MoistureBlock -Waterproof, Rain Proof, Submersible
• CopperDrive -Only LED Driven At 100 Percent
• 5000K Daylight -Less Driver Fatigue, Natural Color

Attributes:

• GTIN: 00810031741151
• Brand Name: Baja Designs
• Add-On: Accessories-298002-Rock Guard (Amber)
• Add-On0: Compatible Products-640168-Controller Module Harness
• Add-On1: Compatible Products-640175-Splitter Harness (2-Light Max)
• Add-On2: Compatible Products-640189-Splitter Harness (4-Light Max)
• Add-On3: Compatible Products-640188-Upfitter Harness (Single Light)
• Add-On: Accessories-298001-Rock Guard (Black)
• Add-On: Accessories-298003-Rock Guard (Clear)
• Add-On: Accessories-668713-Lens Kit (Driving/Combo; Amber)
• Add-On: Accessories-668703-Lens Kit (Driving/Combo; Clear)
• Add-On: Accessories-668701-Lens Kit (Spot; Clear)
• Add-On: Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts
• Add-On: Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts
• Add-On: Compatible Products-640176-Backlit Add-On Harness
• Amperage Rating (A): 6.5
• Average Rated Life (hr.): 49,930
• Backlight Amperage Rating (A): 0.35
• Backlight Wattage (W): 4.83
• Beam Pattern: Spot
• Bezel Material: Billet Machined Aluminum
• Brightness (Lumens): 7,050
• Depth (in.): 3.2
• Description: Spot; Clear; Pair
• Effective Lighting Score (ELS): 7025 / (6.8, 136 degree) / 470
• Height (in.): 5.1
• Housing Color: Black
• Housing Material: Hard Anodized Machined Aluminum
• Length (in.): 5.1
• Lens Color: Clear
• Lens Material: Hardcoated Polycarbonate
• Light Quantity: 2
• Lighting Modes: Beam/Day-Time Running Backlighting
• Lighting Quantity: 4
• Lighting Technology: LED
• Lighting Type: Forward Projecting
• Mounting Hardware Included: Yes
• Mounting Hardware Material: Stainless Steel
• Overvoltage Protection: Built-In
• Product Type: LP4 Pro LED Light Pod Pair w/ Wiring Harness
• Secondary Amperage Rating (A): 1.0
• Secondary Brightness (Lumens): 1,700
• Secondary Light Quantity: 4 LEDs
• Secondary Lighting Technology: LED
• Secondary Lighting Type: Integrated Peripheral Technology (IPT)
• Secondary Wattage (W): 15
• Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
• Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
• Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
• Terminal Connector: DT06-4S Deutsch
• Terminal Type: Mating Connector
• Universal or Specific: Universal
• Wattage (W): 60
• Weight (lbs.): 2.8
• Wiring Harness Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12.0 x 10.0 x 5.0 inches
• Weight: 10.0 lb
