Bilstein B8 5162 Front Leveling Kit
Bilstein 46-263889 combines two B8 5160 remote reservoir shock absorbers with two matched front coil springs for compatible 2014–2026 Ram 2500 6.7L diesel 4WD applications.

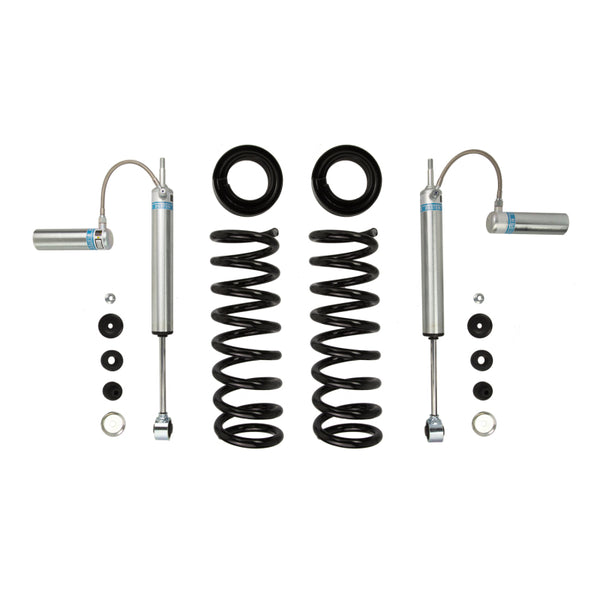

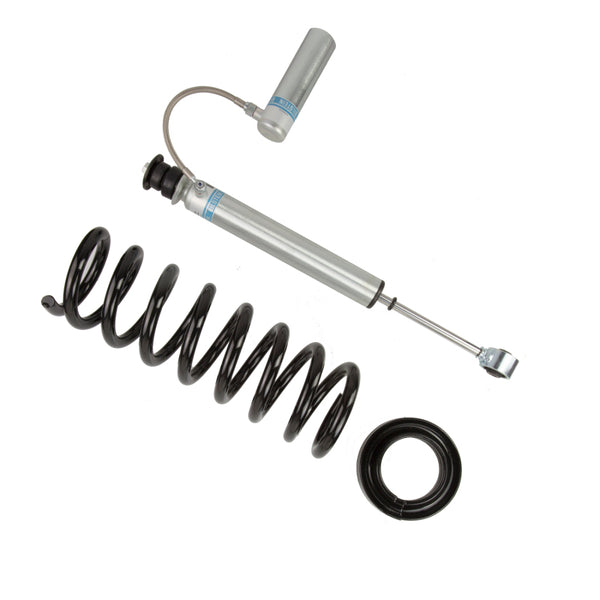

Included components
- Two B8 5160 front remote reservoir shocks — matched to the kit's front springs; the shocks control suspension movement rather than create lift.
- Two matched front coil springs — provide 2.3 inches of front lift on listed 2014–2018 applications and 2 inches on listed 2019–2026 applications.
Vehicle fitment
For select 2014–2026 Ram 2500 models with the 6.7L inline-six diesel engine and 4WD listed in Bilstein's exact-kit application table. Confirm the exact year, trim and suspension configuration before ordering. This listing does not establish fitment for gasoline engines, 2WD trucks, Ram 3500 models or configurations absent from the manufacturer's table.
Year-specific front lift
The application table specifies 2.3 inches of front lift for the listed 2014–2018 configurations and 2 inches for the listed 2019–2026 configurations. These are application-specific lift figures, not a universally adjustable 2–2.3-inch range.
This is a front-only shock-and-spring leveling kit, not a four-shock package. Rear shocks and rear lift components are not listed as included. The matched front springs supply the lift.
Installation requirements
Bilstein recommends an adjustable track bar in its application notes. An adjustable track bar is not listed among the kit's two shocks and two springs. Follow both manufacturer installation documents for spring handling, mounting, reservoir routing and clearance checks.
Remote reservoir damping
The B8 5160 shocks use monotube construction and application-specific digressive damping. Remote reservoirs increase oil capacity for heat dissipation during changing road and trail conditions. The matched spring-and-shock package is designed to install at factory mounting locations.
Manufacturer references
- Bilstein 46-263889 specifications and exact application table
- Bilstein shock installation instructions (PDF)
- Bilstein suspension kit installation instructions (PDF)
Manufacturer part number and store SKU: 46-263889.
