Bilstein 5100 RHA Front Shock Pair 24-239394, 2009-13 Ford F-150 4WD, 0-2.25" Lift

Bilstein B8 5100 Ride-Height-Adjustable Front Shock Pair

This package supplies two Bilstein 24-239394 front shocks for compatible 2009–2013 Ford F-150 4WD trucks. Selectable spring-seat positions allow front ride-height adjustment with the original-equipment coil springs, subject to the installation instructions.

Included components

• Two 24-239394 front shocks — provide 0–2.25 inches of front lift on the listed applications

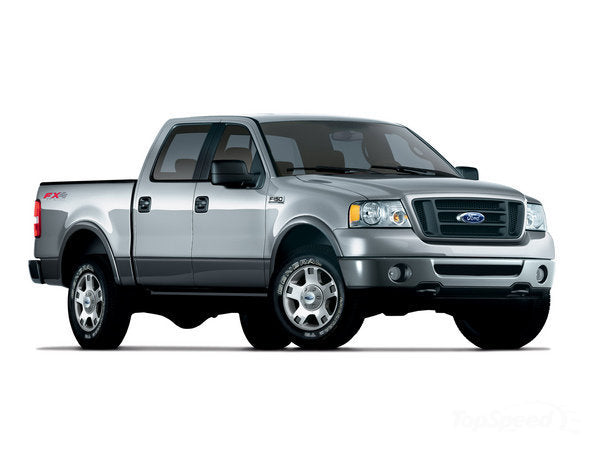

Vehicle fitment

For compatible 2009–2013 Ford F-150 4WD configurations in Bilstein's exact-part application table. Confirm the exact year, trim and suspension configuration before ordering. This listing does not establish Raptor fitment.

Front ride-height adjustment

Multiple snap-ring grooves provide selectable spring-seat positions during assembly. Bilstein's exact-part application range is 0–2.25 inches of front lift, rather than the previous 0–3-inch claim. Follow the instructions for the vehicle and intended ride height.

This is a front shock component pair, not a preassembled coilover package with new springs and upper mounts. New coil springs and upper mounts are not listed as included. Review assembly and original-component reuse requirements before installation.

Rear shocks, rear lift parts and additional leveling spacers are not included in the listed package. Do not assume compatibility with stacked leveling components without manufacturer confirmation.

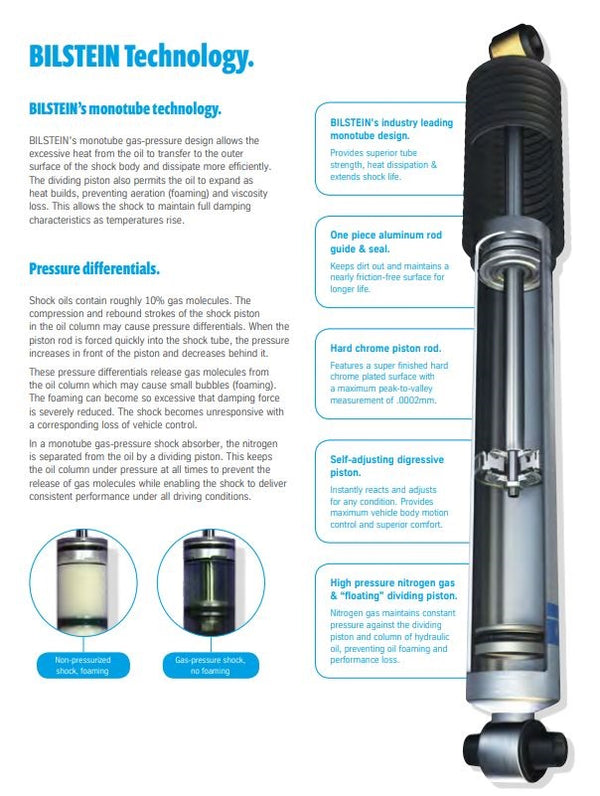

Bilstein 5100 design

Monotube construction and velocity-sensitive digressive damping help respond to changing road inputs. Application-specific tuning supports controlled handling and ride comfort on compatible trucks.

Manufacturer fitment and installation references

• Bilstein 24-239394 specifications and exact vehicle application table
• Bilstein front shock installation instructions (PDF)

Verify the actual suspension configuration and review spring-seat setup and mounting requirements before assembly.
