Bilstein 5100 RHA Front & Rear Shock Kit, 2016-23 Toyota Tacoma, 0-2" Front / 0-1" Rear Lift

Bilstein B8 5100 RHA Front and Rear Shock Kit

This four-shock package combines ride-height-adjustable front shocks with rear replacement shocks for compatible 2016–2023 Toyota Tacoma applications. The fronts provide selectable spring-seat heights with the original springs; the rears accommodate an existing rear suspension height.

Included components

• Two 24-263108 front RHA shocks — provide 0–2 inches of front lift on the listed applications
• Two 24-186728 rear shocks — accommodate 0–1 inch of existing rear lift on the listed applications

Vehicle fitment

For compatible 2016–2023 Toyota Tacoma configurations listed for both parts. The front application table includes year-specific Limited, SR, SR5, TRD Off-Road, TRD Sport and Trail Special Edition rows where applicable. Confirm the exact year, trim, drivetrain and suspension configuration before ordering.

This complete package does not claim TRD Pro compatibility: an individual rear-shock application does not establish fitment of the front-and-rear kit. Do not rely on the older PreRunner trim label as a substitute for checking the exact 2016–2023 vehicle application.

Front leveling versus rear lift

The front 24-263108 application note specifies 0–2 inches of front lift, not 0–3 inches. Select the spring-seat position and reuse the original springs and compatible mounting components according to Bilstein's installation instructions. These are not complete preassembled coilovers.

The rear shocks do not raise the truck. They accommodate stock rear height through 1 inch of existing rear lift; front leveling height does not determine rear lift. Springs, rear lift blocks, spacers and other lift-producing components are not listed as included.

Bilstein 5100 damping

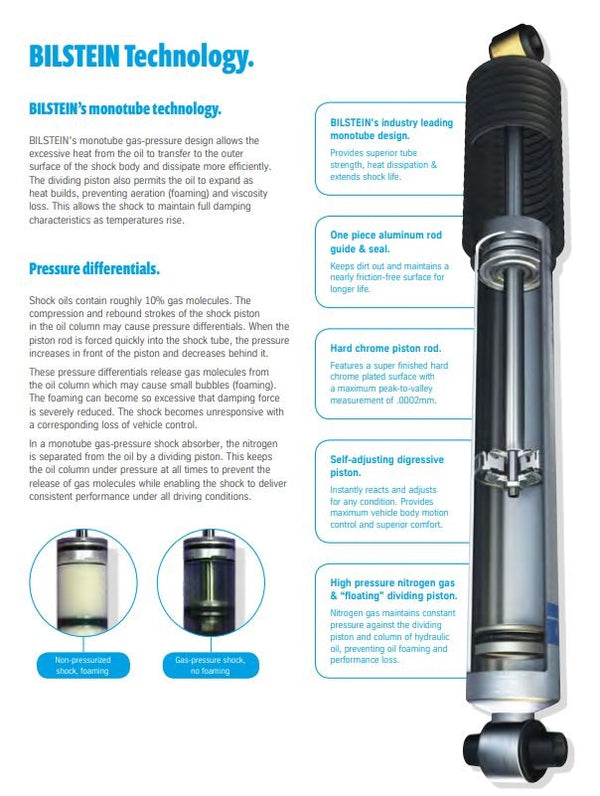

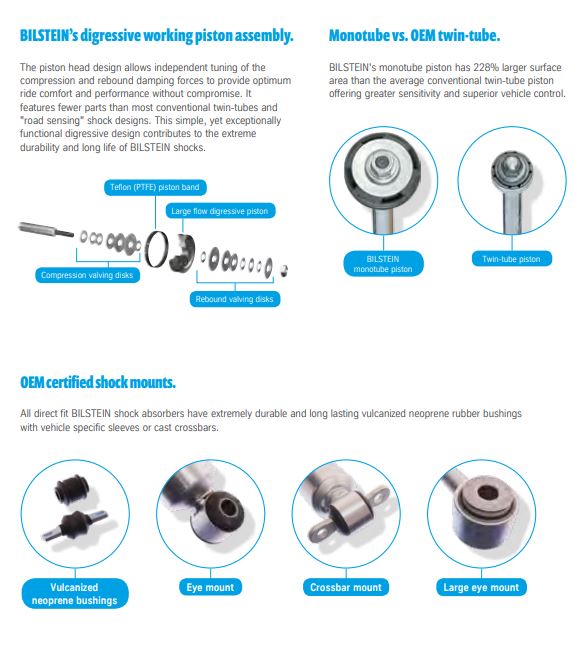

Monotube construction and velocity-sensitive digressive damping help control suspension movement over changing road inputs. Application-specific tuning supports handling and ride comfort on compatible vehicles.

Manufacturer fitment and installation references

• Front 24-263108 specifications and exact application table
• Rear 24-186728 specifications and exact application table
• Front installation instructions (PDF)
• Rear installation instructions (PDF)

Follow the manufacturer instructions for assembly and spring-seat selection, then check alignment and suspension clearance.
