Bring both distance and spread to your adventure bike with the Baja Designs Squadron Pro Auxiliary Light Kit. This universal kit pairs one clear Spot light for reach with one clear Driving/Combo light for broader coverage. One-inch bar mounts, mounting hardware, a wiring harness and a switch are included.

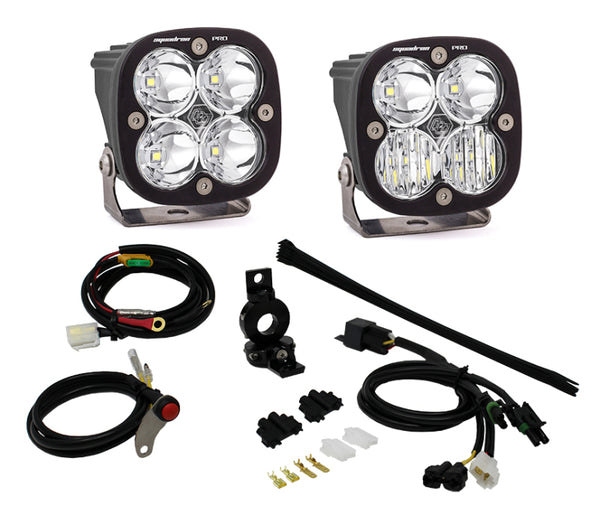

Included components
- One square Squadron Pro clear Spot light, part 490001
- One square Squadron Pro clear Driving/Combo light, part 490003
- 1-inch bar mounts
- Stainless-steel mounting hardware
- Wiring harness
- On/Off switch
- Manufacturer part number and store SKU: 497084
This is a two-light mixed-pattern kit, not two Driving/Combo lights. Although the extended title mentions Driving Combo, both the detailed beam attribute and individual contents identify Spot plus Driving/Combo. These are square Squadron Pro lights, not round Squadron-R models.
Part-specific specifications, per light
- Brightness: 4,095 lumens
- Power: 41.4W
- Current draw: 3A
- Four Cree LEDs; forward-projecting lighting
- Built-in overvoltage protection
- Average rated life: 49,930 hours
- Listed pod dimensions: 3.07 inches long × 3.07 inches high × 2.77 inches deep
- Listed pod weight: 0.75 lb
The figures above describe each light, not whole-kit ratings. The supplied record does not specify an input-voltage range or selectable high/low operation.
Construction and durability
- Black hard-anodized and powder-coated cast-aluminum housing
- Billet-machined aluminum bezel
- Clear hardcoated polycarbonate lens
- IP69K rating; manufacturer describes waterproofing up to 9 feet and pressure-wash capability
- IK10 impact compliance
- Manufacturer states durability exceeds MIL-STD810G testing
Mounting and wiring
The application is universal with 1-inch bar mounts, not a verified bolt-on fitment for every motorcycle. Check bar diameter, mounting clearance, suspension and steering movement, harness routing and your bike's electrical capacity before installation.
The record confirms an included switch and identifies it as On/Off, but its switch-type text also contains the wording “LED Dome Light.” That wording does not change this kit's forward auxiliary-light identity. A dimmer or factory high/low integration is not identified as included.
Review the part-specific installation instructions and aim both lights appropriately. DOT/SAE road-use approval is not established by the supplied record.
Manufacturer coverage
Baja Designs lists a 30-Day Money Back Satisfaction Guarantee and Limited Lifetime Warranty, subject to the manufacturer's terms.
