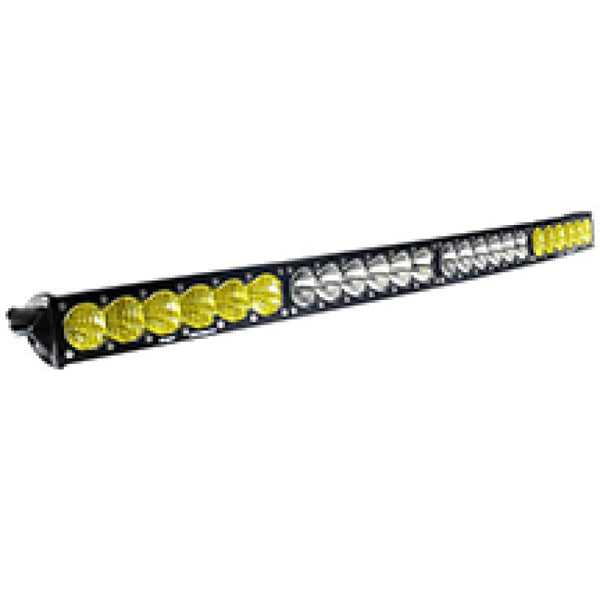

Baja Designs OnX6 Arc Series Dual Control Pattern 40in LED Light Bar - Amber/White

Baja Designs SKU: 524003DC Barcode: 819314020174

$1,829.95

Shipping calculated at checkout

Only 7 in stock!

For a build that needs one bar to do the heavy lifting, this Baja Designs OnX6+ — 40-inch curved Arcdual-control , Driving/Combo pattern, Amber/Clear lens — is the pick. The dual-control layout splits the bar into separately controlled sections, so the amber and clear sides can be run independently or together depending on conditions. The Arc housing is curved to follow the arc of a bumper or windshield header instead of standing off it in a straight line. The driving/combo optic mixes distance spot elements with a wider driving spread, so a single light covers both the far line ahead and the edges of the trail. The Baja Amber lens is the one to run when the air itself is working against you — in dust, fog, rain or snow it knocks down glare and holds contrast that a clear lens loses.

Underneath, it is built the way Baja Designs builds everything: an aircraft grade aluminum with mil-spec hard anodize housing behind a hardcoated polycarbonate lens, an IP69K water-resistance rating (submersion to 9 feet, pressure-washable), durability testing that exceeds MIL-STD810G mil-spec standards, an IK10 impact rating, and LEDs rated at 49,930 hours.

Specifications

  • Output (manufacturer rated): 39,220 (high); 32,760 (low) lumens
  • Wattage by function: 340 (High); 284 (Low)
  • Current draw: 26.8 (High); 22.4 (Low) A
  • LEDs: 24
  • Beam pattern: Driving/Combo
  • Lens color: Amber/Clear
  • Lens material: Hardcoated Polycarbonate
  • Housing: Aircraft Grade Aluminum with Mil-Spec Hard Anodize, black finish
  • Bezel: Billet Machined Aluminum
  • Lighting modes: High Beam/Low Beam
  • Dimensions: 40 x 2.69 x 4.29 in (L x H x D)
  • Weight: 15.05 lbs
  • LED rated life: 49,930 hours
  • Water resistance: IP69K (waterproof to 9 ft, pressure-washable)
  • Impact resistance: IK10
  • Durability testing: Exceeds MIL-STD810G (mil-spec)
  • Overvoltage protection: Built-In

Fitment & installation

This is a universal-fit bar: it mounts anywhere you have a solid mounting point and power — a roof rack, a bumper, or a windshield header on a truck, Jeep or UTV.

What's in the box

In the box: mounting hardware (mounting brackets). No wiring harness is included — the record lists a hi-low dongle in the box instead.
