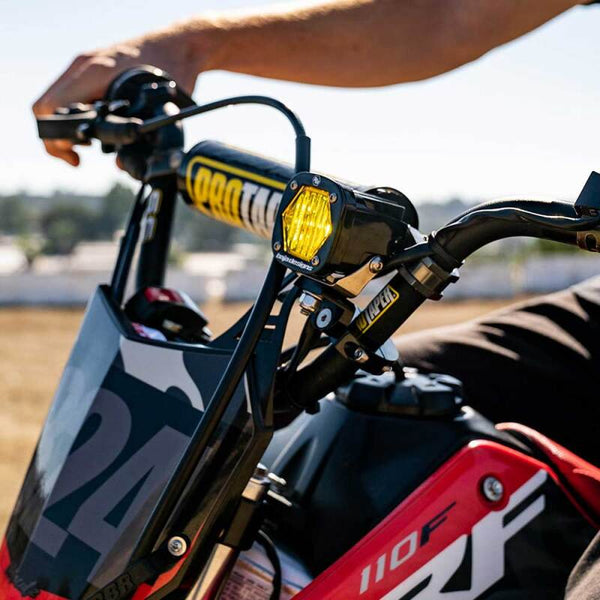

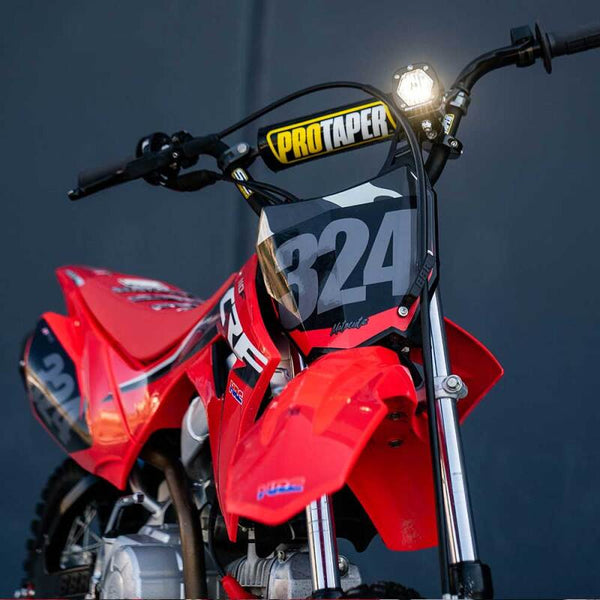

The Baja Designs 387002 S1 auxiliary light kit adds clear Wide Cornering illumination to compatible electric-start pit bikes. Designed for most 7/8-inch-diameter handlebars, the compact S1 light connects to the bike's battery through the included wiring harness. The manufacturer specifies at least 20 watts of available power.
Included contents
- One S1 LED light, part 380005, with a clear Wide Cornering lens
- 7/8-inch handlebar mounting components
- Stainless-steel mounting hardware
- Battery-powered wiring harness
Lighting and construction
- Manufacturer-listed output: 2,320 lumens
- Operating voltage: 9–28 volts
- Power consumption: 19.596 watts
- Amperage rating: 1.420 amps
- Black hard-anodized and powder-coated cast-aluminum housing
- Billet-machined aluminum bezel and hardcoated polycarbonate lens
- Built-in overvoltage protection
- Manufacturer-listed IP69K water-resistance and IK10 impact-resistance ratings
Compact fit and compatibility
The light measures 2.1 inches in length, height and depth and weighs 0.4 pounds. This is a universal-style kit for most electric-start bikes with compatible 7/8-inch handlebars and at least 20 watts of available electrical power, not a model-specific fitment guarantee. Confirm mounting clearance, battery connection and electrical capacity before installation.
Manufacturer part number
387002
