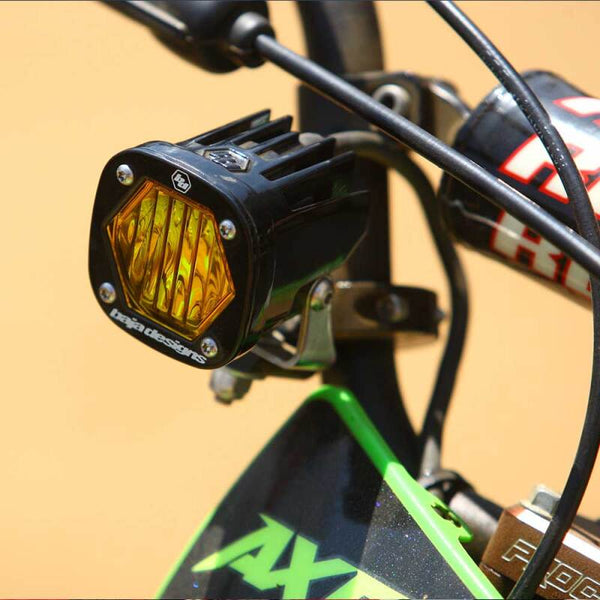

Keep the pit-bike fun going after sunset with the Baja Designs S1 Electric Start Pit Bike Auxiliary Light Kit. This single-light package combines a Baja Amber Wide Cornering S1 pod with a handlebar mount and a wiring harness designed to run from the bike's battery.
The manufacturer specifies compatibility with most 7/8-inch-diameter handlebars and most electric-start bikes with at least 20W of available power. Confirm both mounting clearance and electrical capacity before installation; universal designation does not mean it fits every bike.

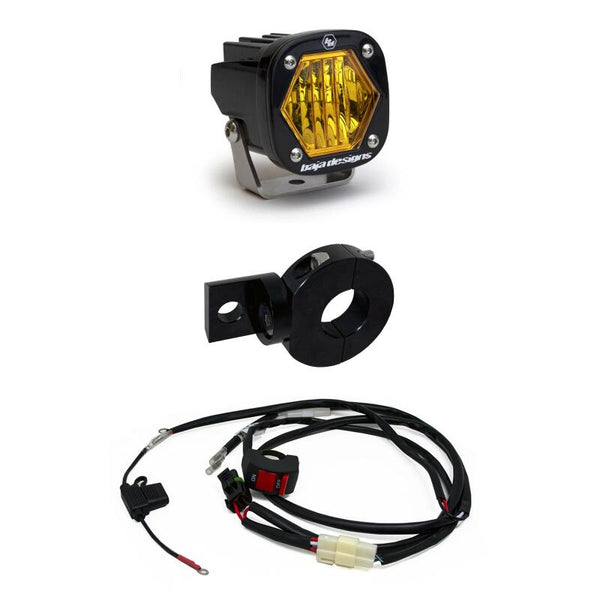

Kit configuration and contents
- One S1 LED auxiliary light pod, manufacturer-listed component 380015
- Baja Amber lens with Wide Cornering beam pattern
- 7/8-inch handlebar mount
- Mounts and installation hardware
- Battery-powered wiring harness included
- Manufacturer part number and store SKU: 387003
S1 light specifications
- Light output: 2,320 lumens
- Manufacturer-listed wattage: 19.596W
- Current draw: 1.42A
- Operating voltage: 9–28V
- Built-in overvoltage protection
- Manufacturer-rated average life: 49,930 hours
- Light dimensions: 2.1 inches depth, height and length
- Light weight: 0.4 lb
Construction and durability
- Black hard-anodized and powder-coated cast-aluminum housing
- Billet-machined aluminum bezel
- Hardcoated polycarbonate lens
- Stainless-steel mounting hardware
- Manufacturer states durability exceeds MIL-STD810G testing
- IK10 impact-resistance compliance
- IP69K rating; manufacturer describes the light as pressure washable and waterproof up to 9 feet
Specifications and dimensions apply to the single S1 light, not the full mounting package. Follow the manufacturer's installation instructions for battery wiring, mounting and aiming.
