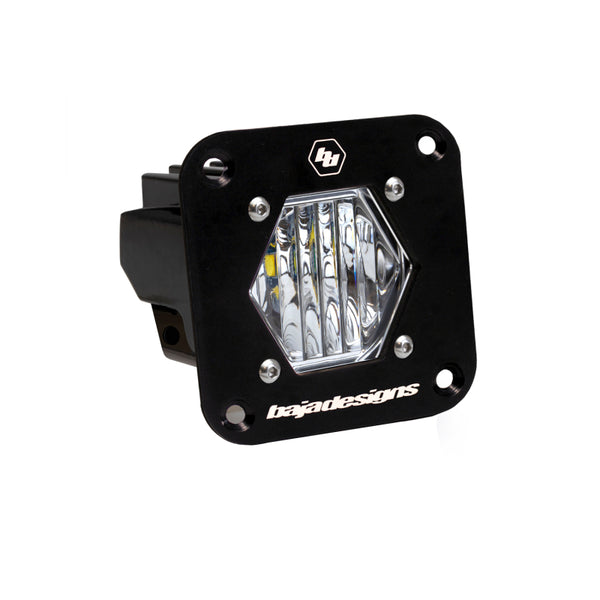

Add compact auxiliary lighting with the Baja Designs S1 black flush-mount LED light. This single pod combines a clear Wide Cornering lens with a flush-mount configuration for installations where you want light integrated into a suitable mounting surface rather than on a projecting bracket.
Configuration and included components
- One S1 flush-mount LED light pod
- Clear lens with Wide Cornering beam pattern
- Black housing
- Mounting hardware included, with stainless steel specified
- Wiring harness not included
- Universal application designation
- Manufacturer part number and store SKU: 381005
Specifications for the single light
- Listed brightness: 2,320 lumens
- Power: 19.596W
- Current draw: 1.42A
- Operating voltage: 9–28V
- One LED
- Listed pod dimensions: 2.1 inches length, width and height
- Listed weight: 0.4 lb
- Average rated life: 49,930 hours
- Built-in overvoltage protection
Construction and durability
- Hard-anodized and powder-coated cast aluminum housing
- Powder-coated cast aluminum bezel
- Hardcoated polycarbonate lens
- IK10 mechanical impact compliance
- IP69K rating; manufacturer describes waterproofing up to 9 feet and pressure-wash capability
- Manufacturer states durability exceeds MIL-STD810G testing
Flush-mount installation
Baja Designs describes a mounting opening made with a 2.5-inch hole saw for its S1 flush-mount design. The listed 2.1-inch dimensions describe the pod and should not be treated as the overall flush-mount bezel dimensions or the required cutout size. Verify the mounting template, surface suitability, rear clearance and wiring route before cutting.
This is a universal single light, not a vehicle-specific reverse-light pair or complete wiring kit. Select a suitable harness separately. The supplied record lists harnesses, splitters, extensions, alternate lens kits and rock guards as accessories or compatible products, not included contents.
The supplied record does not establish DOT/SAE approval for on-road use.
Manufacturer coverage
Baja Designs lists a 30-Day Money Back Satisfaction Guarantee and Limited Lifetime Warranty, subject to the manufacturer's terms.
