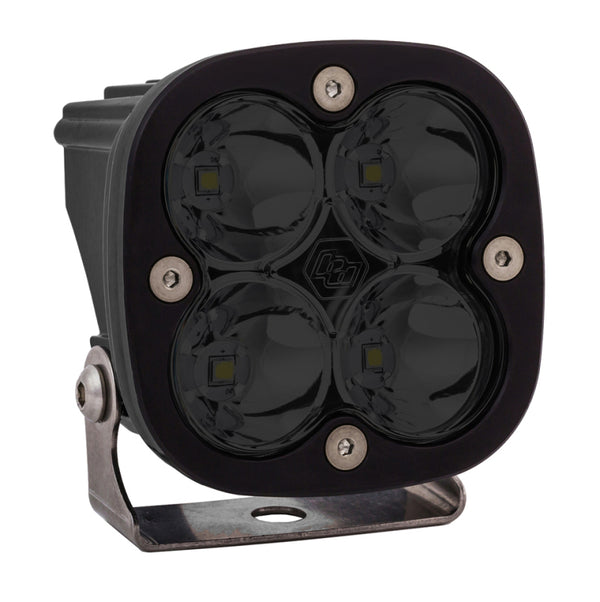

The Baja Designs 497093 Squadron Pro is a single infrared LED auxiliary light pod with a 940nm Driving/Combo configuration and black aluminum housing. Designed for use with night-vision equipment, its compact four-LED housing measures 3.07 inches long × 3.07 inches high × 2.76 inches deep. Stainless-steel mounting hardware is included; a wiring harness is not.
940nm infrared configuration
- One Squadron Pro infrared light pod, not a pair
- Four Osram 940nm LEDs
- Beam pattern: Driving/Combo
- Black housing with hardcoated polycarbonate lens
- Universal application; confirm mounting, electrical and night-vision equipment compatibility
- Manufacturer part number / store SKU: 497093
The general marketing description discusses both 850nm and 940nm versions, but the exact description and LED specification identify this part as 940nm. It is an infrared model rather than a conventional clear or amber visible-light pod. Night-vision equipment is not listed among the supplied contents.
Part-specific specifications
- Listed lighting mode: High (1700mW/sr; 3960mW)
- Power: 41.4W
- Current draw: 3A
- LED quantity: four
- Product dimensions: 3.07 inches long × 3.07 inches high × 2.76 inches deep
- Product weight: 0.75 lb
- Average rated life: 49,930 hours
- Built-in overvoltage protection
The manufacturer record also contains a brightness field of 4,095 lumens. Because this is explicitly a 940nm infrared model and the record provides no explanation of that visible-light-style rating, it should not be treated as confirmed visible-light output or a measure of infrared performance. The infrared High-mode figures above are retained exactly as supplied; no viewing-distance rating or operating voltage range is provided.
Construction and durability
- Aircraft-grade aluminum housing with Mil-Spec hard anodize
- Billet-machined aluminum bezel
- Hardcoated polycarbonate lens
- Stainless-steel mounting hardware included
- Manufacturer-listed durability: exceeds MIL-STD810G testing
- Manufacturer-listed impact resistance: IK10
- Manufacturer-listed water resistance: IP69K, described as waterproof up to 9 feet and pressure washable
Wiring and optional accessories
No wiring harness is included. The manufacturer specifically identifies 640117 as the applicable harness for this light. Its accessory list also includes 640093 upfitter wiring, splitters, 640165 10-foot extension and 640164 Hi/Low wiring. Confirm the correct arrangement with the manufacturer's installation instructions. A Hi/Low harness appearing as an accessory does not establish an additional low mode for this part; the supplied mode specification lists High.
The black rock guard, clear light cover and anti-theft hardware are separately listed accessories or associated products, not included contents. A clear cover does not change this light's 940nm infrared configuration.
Manufacturer coverage
Baja Designs lists a Limited Lifetime Warranty and a 30-day money-back Satisfaction Guarantee, subject to its terms.
