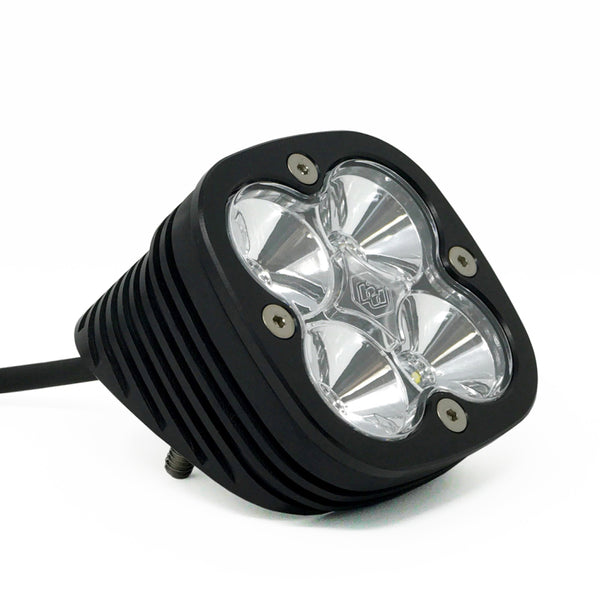

The Baja Designs 492006 Squadron Pro is a single LED work light with a clear Work/Scene lens, black housing and 25-degree angled mounting design. The manufacturer describes it as a solution for the side of a vehicle or trailer, providing illumination for camp, pit or other work areas. Output is listed at 4,095 lumens for the single four-LED pod.
Configuration and included contents
- One Squadron Pro angle-mount LED light pod, not a pair
- 25-degree angled housing with angled flush-mount design
- Beam pattern: Work/Scene
- Clear hardcoated polycarbonate lens; black housing
- Stainless-steel mounting hardware included
- No wiring harness included
- Universal application; confirm mounting space and electrical compatibility
- Manufacturer part number / store SKU: 492006
The angled mount is intended for flat mounting surfaces where an angled auxiliary light is useful. Baja Designs describes installation by drilling three small holes. Follow the manufacturer's installation instructions for hole placement and dimensions before modifying a vehicle or trailer; the product dimensions below are not a drilling or cutout template.
Part-specific specifications
- Output: 4,095 lumens for the single pod
- Power: 41.4W in the detailed specifications
- Current draw: 3A
- LED quantity: four; technology listed as Cree LED (2 Types)
- Product dimensions: 3.07 inches long × 3.07 inches high × 2.77 inches deep
- Product weight: 0.75 lb
- Average rated life: 49,930 hours
- Built-in overvoltage protection
The marketing text rounds power consumption to 41W, while the detailed specification lists 41.4W. The record does not supply an operating voltage range. Its lighting-modes field says “Beam”; a Hi/Low harness appearing in the accessory list does not establish built-in high/low modes.
Construction and durability
- Hard-anodized and powder-coated cast aluminum housing
- Powder-coated cast aluminum bezel
- Hardcoated polycarbonate lens
- Stainless-steel mounting hardware
- Manufacturer-listed durability: exceeds MIL-STD810G testing
- Manufacturer-listed impact resistance: IK10
- Manufacturer-listed water resistance: IP69K, described as waterproof up to 9 feet and pressure washable
Wiring and optional accessories
No wiring harness is included. The manufacturer specifically identifies 640117, described as the Squadron 2-Light Max Wiring Harness 150W, as the applicable harness. Its accessory list also includes upfitter wiring, splitters, Hi/Low wiring and a 10-foot extension. Confirm the appropriate wiring and controls with the manufacturer's installation instructions.
Rock guards, covers, replacement lens kits and anti-theft hardware are separately listed accessories or associated products, not included contents. Their alternative colors and patterns do not change the clear Work/Scene configuration supplied with this part.
Manufacturer coverage
Baja Designs lists a Limited Lifetime Warranty and a 30-day money-back Satisfaction Guarantee, subject to its terms.
Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
