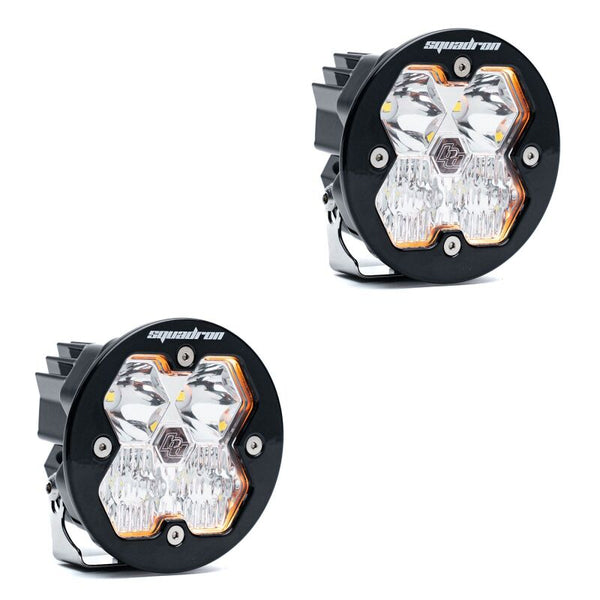

The Baja Designs Squadron-R 2.0 Sport 5878032NH includes two round LED pods with Driving/Combo beams and clear lenses. This No Harness pair is supplied without a wiring harness. Each pod delivers 3,200 lumens at 30W, with redesigned optics for improved beam control and a nine-color RGBW backlight.
Round styling and updated construction
A 4-inch round bezel offers traditional styling for custom installations and aftermarket bumpers with round openings. Gloss-black aluminum housings, updated lens patterns and rugged 4-pin Deutsch connectors complement mounting brackets with increased vertical adjustability. Improved uService components include secure clip-in reflectors for lens changes and redesigned sealing gaskets.
Features and specifications
- Quantity: two Squadron-R 2.0 Sport LED pods; wiring harness not included.
- Manufacturer part number: 58-7803-2NH; SKU: 5878032NH.
- Driving/Combo beams with clear lenses.
- 4-inch round bezels and gloss-black aluminum housings.
- Light output: 3,200 lumens per pod.
- Power draw: 30W / 2.2A at 13.8V per pod.
- Operating white-light voltage: 10–36V; operating backlight voltage: 11–14V.
- Nine selectable RGBW backlight colors.
- 4-pin Deutsch connectors.
- IP69K water-resistance rating.
- PIES-listed dimensions: 3.32in depth, 3.29in height and 2.84in length. The manufacturer separately describes a 4-inch round bezel; confirm overall mounting dimensions and clearance before installation.
Installation
Plan a compatible wiring setup because this pair does not include a harness. Universal application does not mean a vehicle-specific direct fit. Verify mounting space, bumper opening and aiming requirements. Review the Baja Designs installation instructions for 58-7803-2NH.
