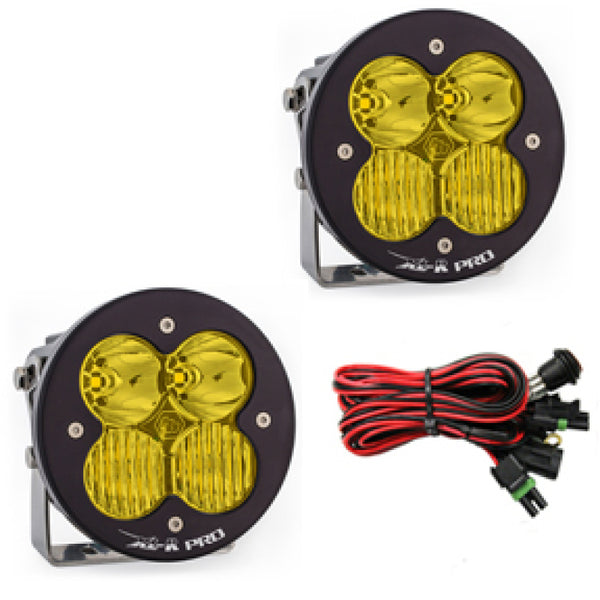

The Baja Designs 537813 XL-R Pro pair includes two round-bezel auxiliary LED light pods with Baja Amber Driving/Combo lenses, a wiring harness and stainless-steel mounting hardware. Designed to illuminate terrain ahead during off-road use, the XL-R Pro combines a round outer bezel with black aluminum housings. Amber describes the lenses, not the housing color.
Configuration and included contents
- Two XL-R Pro LED light pods with round outer bezels
- Baja Amber Driving/Combo lenses
- Black housings
- Wiring harness included
- Stainless-steel mounting hardware included
- Universal application; confirm mounting space and electrical compatibility
- Manufacturer part number / store SKU: 537813
Baja Designs describes its high-speed spot reflectors as providing a longer and wider beam, with 65% greater distance than the previous-generation model. This is a manufacturer comparison, not a supplied distance measurement. The exact-part description and beam specification identify this pair as Driving/Combo, rather than Spot-only.
Output information and specifications
The exact manufacturer record contains conflicting output figures: its marketing description states 4,095 raw lumens per light, while its detailed brightness field lists 4,900 lumens. These are alternative figures in the source, not additive ratings or a confirmed whole-pair total. Confirm the applicable output with Baja Designs if it is critical to your lighting plan.
- Detailed power specification: 40W per light
- Detailed current specification: 2.9A per light
- Four Cree XP-L LEDs per pod
- Lighting modes listed as: High Beam/Dimming Feature (20%)
- Each pod measures 5.24 inches long × 5.24 inches high × 3.65 inches deep
- Listed product weight: 2.45 lb per pod
- Average rated life: 49,930 hours
- Built-in overvoltage protection
The manufacturer lists a 20% dimming feature but supplies no separate dimmed-mode lumen or power figures in this record. No operating voltage range is supplied. Confirm the wiring and controls required for the available functions before installation.
Construction and durability
- Hard-anodized and powder-coated cast aluminum housings
- Powder-coated cast aluminum bezels
- Hardcoated polycarbonate lenses
- Stainless-steel mounting hardware
- Manufacturer-listed durability: exceeds MIL-STD810G testing
- Manufacturer-listed impact resistance: IK10
- Manufacturer-listed water resistance: IP69K, described as waterproof up to 9 feet and pressure washable
Wiring and optional accessories
A wiring harness is explicitly included, but the record does not identify its part number or switch arrangement. The compatible-products list separately names 640119 Hi/Low wiring, 640094 upfitter wiring, 660060 off-road mode-switch wiring and harness splitters. That accessory list does not establish which harness is included. Follow the manufacturer's installation instructions for the appropriate connections and controls.
Rock guards, covers, replacement lens kits and anti-theft hardware are separately listed accessories or associated products, not included contents. Their alternative colors and patterns do not change the Baja Amber Driving/Combo configuration supplied in this pair.
Manufacturer coverage
Baja Designs lists a Limited Lifetime Warranty and a 30-day money-back Satisfaction Guarantee, subject to its terms.
