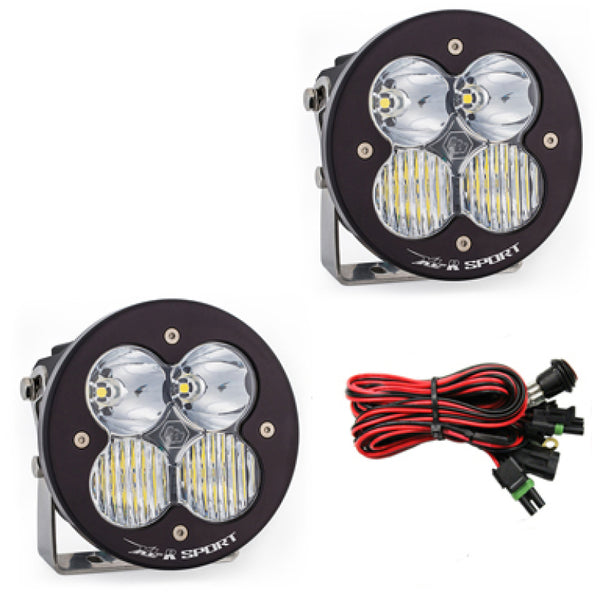

The Baja Designs 577803 XL-R Sport package includes two round auxiliary LED pods with clear Driving/Combo lenses, black housings, a wiring harness and mounting hardware. The XL-R Sport's round outer bezel distinguishes this pair from the standard XL Sport configuration. It is a universal off-road lighting package for a custom installation.
Configuration and included contents
- Two complete XL-R Sport LED light pods with round outer bezels
- Clear Driving/Combo lenses
- Black powder-coated cast aluminum housings
- Wiring harness included
- Mounting hardware included; stainless-steel material listed
- Universal application; confirm mounting space and electrical compatibility
- Manufacturer part number / store SKU: 577803
The exact-part description and beam-pattern field identify Driving/Combo, not Spot or Wide Cornering. General marketing about high-speed spot reflectors describes the manufacturer's optical technology; it does not change this pair's supplied Driving/Combo configuration.
Manufacturer output discrepancy
The marketing text lists 3,162 raw lumens per light, while the detailed brightness attribute lists 3,150 lumens. Both figures appear in the exact-part record and are presented as alternative manufacturer figures, not combined or treated as a pair total. Confirm the applicable specification with Baja Designs if the small output difference is important to your installation.
Detailed specifications per light
- Detailed brightness attribute: 3,150 lumens per pod; marketing lists 3,162 raw lumens each
- Power: 26W per pod
- Current draw: 2A per pod
- Four LEDs per light
- Forward-projecting LED lighting
- Listed dimensions: 5.24 inches long × 5.24 inches high × 3.65 inches deep per pod
- Product weight: 2.45 lb per pod
- Average rated life: 49,930 hours
- Built-in overvoltage protection
The power and current figures above are the values supplied for this XL-R Sport record, not specifications borrowed from the standard XL Sport. Ratings apply per light, not to the whole pair. No operating voltage range, measured beam distance or separate low-mode output rating is supplied.
Wiring and lighting modes
The record explicitly includes a wiring harness but does not identify its part number, length or switch type. The lighting-modes attribute describes High Beam and states that a dimmer is sold separately to enable the high/low feature. Do not assume the included package provides high/low control.
The compatible-products list separately names 640094 upfitter wiring, 640119 Hi/Low wiring and 613608 and 613609 splitters. These accessory listings do not identify the included harness or establish additional supplied components. Follow the manufacturer's installation instructions for mounting, electrical connections and controls.
Construction and durability
- Powder-coated cast aluminum housings and bezels
- Hardcoated polycarbonate lenses
- Stainless-steel mounting hardware
- Manufacturer-listed durability: exceeds MIL-STD810G testing
- Manufacturer-listed impact resistance: IK10
- Manufacturer-listed water resistance: IP69K, described as waterproof up to 9 feet and pressure washable
Baja Designs describes the XL-R Sport as an auxiliary lighting option for off-road trucks, vans, UTVs and motorcycles. These general examples do not establish direct-fit vehicle brackets or vehicle-specific wiring.
Optional accessories and manufacturer coverage
Clear and amber covers, black rock guards, replacement lens kits and anti-theft hardware are separately listed accessories or associated products, not additional confirmed package contents. They do not change the supplied clear Driving/Combo lenses.
Baja Designs lists a Limited Lifetime Warranty and a 30-day money-back Satisfaction Guarantee, subject to its terms.
