Eibach PRO-TRUCK-LIFT Stage 2
E86-82-073-01-22 combines adjustable front Coilover 2.0 units, rear Sport shocks and rear PRO-LIFT springs. The threaded front spring perches allow stance adjustment, while the matched spring-and-damper system is designed for road control and off-road compliance.
Verified applications
- 2003–2009 Toyota 4Runner, 4.0L V6, 2WD/4WD
- 2003–2009 Toyota 4Runner, 4.0L V6, 2WD/4WD with X-REAS
- 2006–2009 Toyota FJ Cruiser Base, as listed on the current exact-kit page
The linked rear-spring document has an older 2007–2009 FJ header; the current complete-kit application page lists 2006–2009. V8 fitment is not among the applications listed for this exact Stage 2 kit. For X-REAS vehicles, confirm the required factory-system removal procedure with a qualified installer; compatibility does not promise retention of X-REAS operation.

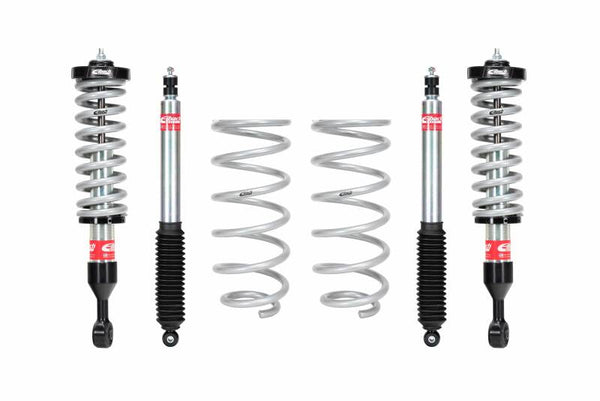

Components and lift information
- Front Coilover 2.0 subkit E86-82-073-01-20: the linked D3982 instructions list two 82112.9003 coilover assemblies and one ETCO2.0 adjustment tool. No numerical vehicle lift range is confirmed in those instructions.
- Rear spring subkit E30-82-073-01-02: D3596 lists two F31-82-073-01-RA rear springs. A numerical rear lift height is not specified in that document.
- Rear Sport shocks: linked D3329 instructions for E60-82-008-02-01 identify the individual damper as 82112.8004.1. Rear shocks provide damping, not independent lift. That individual-shock document is not a consolidated full-kit quantity manifest.
D3329 also lists a dust boot 84-2015, two cupped washers 84-1339, bushing 84-1373, lower stem bushing 84-1532, upper stem bushing 84-1531, center washer 84-1338, rod-end assembly 28-1672, M12-1.25 nylock nut H63025400 and zip tie H70065500 per individual shock package.
The previous title's front 1.5–4-inch and rear 0–1.5-inch figures are not presented as verified lift produced by this complete kit. Actual stance depends on the springs, permitted front adjustment and vehicle weight. Generic air-bag-delete wording is not a promise of included conversion hardware.
Front adjustment limit
Do not exceed a spring-perch height of 75mm. The linked front instructions warn that exceeding this setting can damage the shock and suspension. This is a spring-perch measurement, not 75mm of vehicle lift. Use the illustrated measurement and do not substitute another coilover's adjustment limit.
Construction and performance
- Preassembled front Coilover 2.0 units with threaded spring perches and ERO off-road race springs
- Anodized 6061-T6 billet aluminum coilover mounts
- 46mm pistons and nitrogen-filled monotube variable-force damping
- Individually dyno-tested dampers and cycle-tested heavy-duty bushings
- Rear Sport shocks matched with PRO-LIFT rear springs
- Engineered, tested and manufactured by Eibach in the USA, as stated in the existing listing
Installation requirements
D3596 prohibits use of the rear lift springs with OE shocks and requires extended-travel shocks. Retain the original rear spring isolators, dampers and tubing as instructed, and install springs with the Eibach logo upright. The front units are preassembled; rear springs and shocks require separate installation.
Use a qualified suspension installer. Follow all exact-component instructions, check alignment and tire, brake-line and sensor clearances, and recheck shock fastener torque and component clearance after 10 miles. The front instruction file is D3982.pdf, identifies E86-82-073-01-20 on its first page and carries D3855 page footers.
