Eibach PRO-TRUCK-LIFT Stage 1 HD
E80-82-071-05-22 matches front lift springs, heavy-duty rear lift springs and front/rear Sport shocks for fifth-generation 4Runners carrying additional weight. This is the HD load-oriented system, not a standard unloaded spring package or preassembled Coilover 2.0 kit.
Vehicle fitment
2010–2024 Toyota 4Runner 4WD and RWD/2WD. Eibach states that the system works with KDSS-equipped vehicles. That statement does not establish X-REAS conversion requirements or special-package compatibility; confirm exact factory suspension equipment before ordering.
Important load requirement
D4253 specifies vehicles with 200–500 lb of extra weight. The product page separately describes 200–400 lb of added rear weight and references heights with 500 lb. These are not identical load statements. Use the exact instruction load chart and confirm suitability for your actual load distribution with Eibach. The page recommends running at the intended fully loaded height and warns that excessive lift can cause poor ride quality. This is not a recommendation to run the truck unloaded for maximum height.

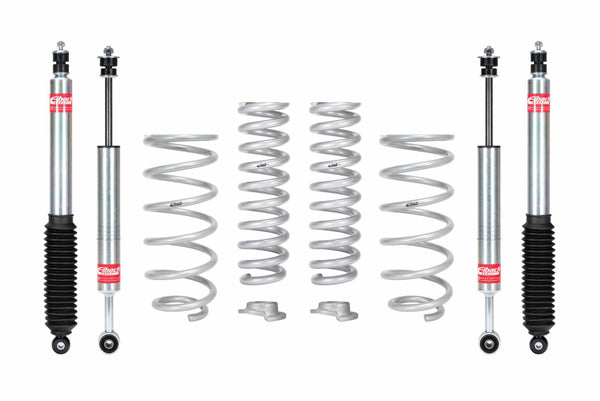

Included components and lift details

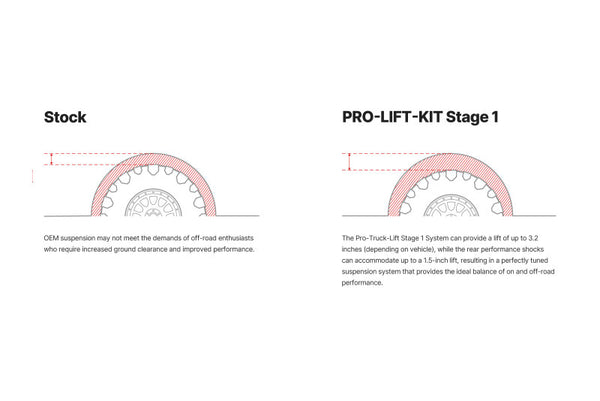

- Two front lift springs, F31-82-071-01-FA: D4253 page 3 illustrates 2.75-inch and 3.4-inch average front lift values with Eibach springs. Consult the complete chart for the correct retaining-ring position; do not infer the groove mapping from these values alone. Positions marked for extra weight are only for that purpose. The product page states its listed front height uses the bottom clip.
- Two HD rear lift springs, F31-82-071-06-RA: approximate rear lift decreases as load increases. D4253 page 5 lists 2.5 inches at 0 lb, 2.3 inches at 100 lb, 2.1 inches at 200 lb, 1.9 inches at 300 lb, 1.7 inches at 400 lb and 1.5 inches at 500 lb. The unloaded rows describe height behavior, not a recommended unloaded operating setup.
- Two front Sport shocks, 82117.8003
- Two rear Sport shocks, 82112.8004
- Two retaining-ring kits, 84-1804.0
- Two nylon cable ties, H70065500
- Two dust boots, 24-2015, as printed in D4253
Contents follow D4253. Springs and installed perch positions determine ride height; the shocks provide damping, not independent lift. All load-chart heights are approximate and vary with vehicle tolerances, load distribution and product tolerances.
Construction and features
- Matched spring-and-shock system designed for increased travel and performance under added load
- High-pressure monotube floating-piston design, heavy-duty 46mm piston and Nitro-coated shaft

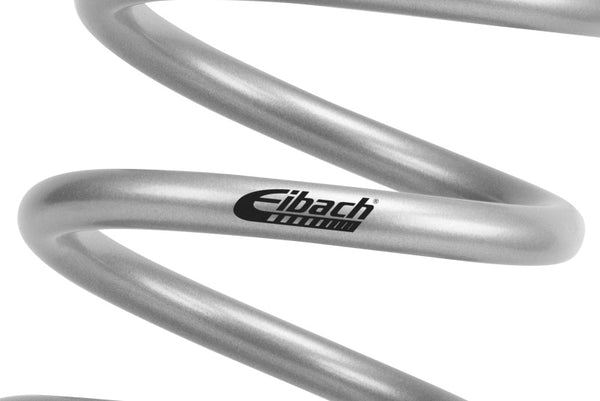

- Eibach off-road race spring technology and OE quality standards
- Made in the USA
- Two-year warranty, subject to Eibach terms
Installation notes
The instructions require transfer of the original front spring perch to the Eibach Sport damper. Fully seat the snap ring in its groove; follow page 4 for spacer-ring orientation if included. Improper perch installation can permanently damage the shock.
Install rear shocks with dust boots facing down for moisture drainage. Inspect mounting points and hardware, verify brake-line, wiring and exhaust clearance, and follow vehicle-service torque specifications. Recheck installation, fastener torque and clearance after 10 miles. Do not disassemble the shocks.
