Eibach PRO-TRUCK-LIFT Stage 2

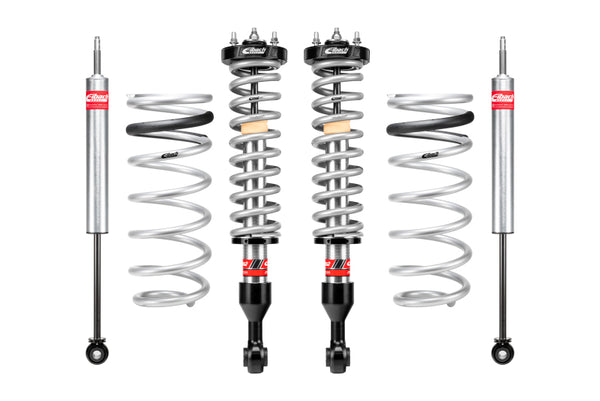

E86-82-109-01-22 combines threaded-height-adjustable front Coilover 2.0 units, rear Sport shocks and rear lift springs for the sixth-generation Toyota 4Runner. The matched system is designed for improved road control and off-road compliance, with front spring-perch adjustment to fine-tune stance for vehicle weight and equipment.
Verified application
Eibach lists 2025–2026 Toyota 4Runner TRD / TRD Off-Road, 2.4L Turbo Hybrid, 4WD, N500. Do not assume fitment for non-hybrid vehicles, other trims or other factory suspension configurations not listed for this exact kit.
Included components and lift information

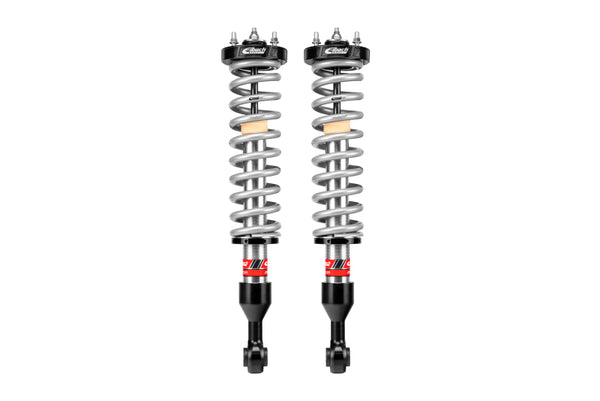

- Front Coilover 2.0 subkit E86-82-109-01-20: D4650 lists two 82135.9003 front coilovers and one ETCO2.0 spanner wrench. The shipped setting is intended to level with OE rear springs; no numerical total front lift height is confirmed in the reviewed text.

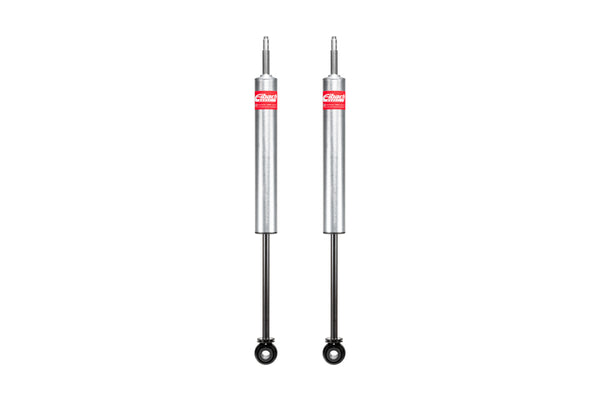

- Rear Sport shocks: linked instructions D4648 for E60-82-109-01-01 identify an individual 82135.8004 damper with 84-2015 dust boot and H70065500 zip tie. These are individual-shock instructions, not a complete-kit quantity manifest. Shocks provide damping, not rear lift.

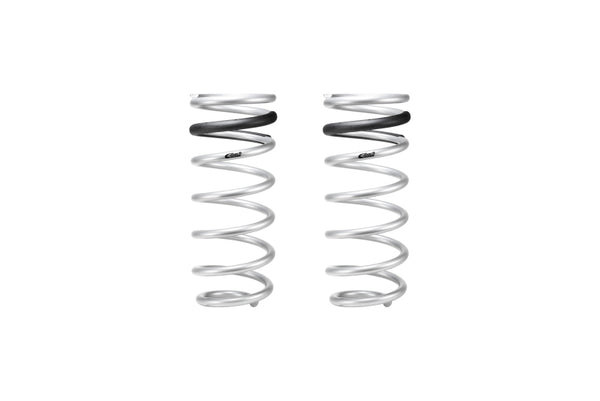

- Rear spring subkit E30-82-108-01-02: D4400 lists two F31-82-108-01-RA rear springs. A numerical rear lift height is not specified in that document. Its header names the Land Cruiser, but Eibach links it directly from this exact 4Runner kit page.
The linked documents describe the component subkits rather than one consolidated packing list. Generic air-bag-delete wording is not retained as a promise of included conversion hardware.
Front height setup

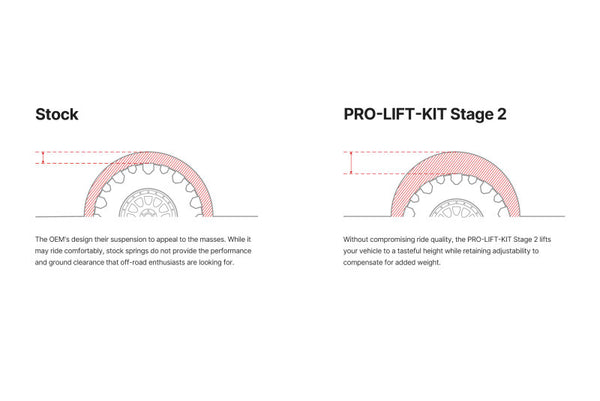

Eibach specifies that the front out-of-box setting levels with the original rear spring. Additional preload is needed to level with Eibach rear springs. Actual height varies with vehicle packages and weight distribution.
D4650 references an 80mm collar setting for leveling with OE rear springs. This is an adjustment measurement, not 80mm of vehicle lift and not a stated maximum. Follow the measurement diagram and maximum limit in the complete D4650 instructions; exceeding the permitted setting can damage the shock and suspension.
Construction and performance

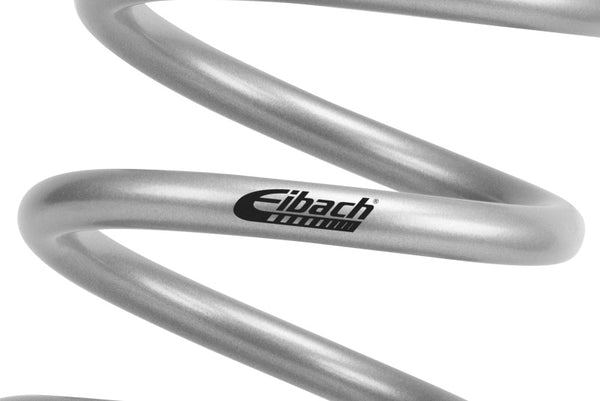

- Threaded front spring perches with ERO off-road race springs
- Anodized 6061-T6 billet aluminum coilover mounts
- 46mm pistons and nitrogen-filled monotube variable-force damping
- Individually dyno-tested dampers for matched performance
- Cycle-tested heavy-duty bushings
- Engineered, tested and manufactured by Eibach in the USA
- Two-year manufacturer warranty, subject to Eibach's terms
Installation requirements
The rear springs must not be used with OE shocks; D4400 requires extended-travel shocks and retention of the original spring isolators and dampers. Have a qualified suspension installer follow all exact-component instructions, check alignment and tire, brake-line and sensor clearances, and verify fastener torque and component clearance after installation.
Exact-kit application and specifications | D4650 front coilovers | D4648 rear Sport shock | D4400 rear springs
