Eibach PRO-TRUCK COILOVER 2.0 Front Pair
Eibach E86-82-096-01-20 supplies two preassembled front coilovers with threaded spring-perch adjustment for the Tundra configurations listed below. The spring-and-damper assemblies allow front ride-height fine tuning while providing variable-force damping for road and trail use.
Exact vehicle fitment
2022–2026 Toyota Tundra XK70 Crew Cab, subject to the following separate Eibach application rows:
- 3.4L 4WD: SR, SR5, Limited and TRD Offroad
- 3.4L i-FORCE MAX Hybrid 4WD: SR, SR5, Limited and TRD Offroad, as listed by Eibach
- 3.4L 4WD with load-leveling rear height-control air suspension: SR, SR5, Limited and TRD Offroad
- 3.4L RWD: SR, SR5, Limited and Platinum
Excludes vehicles equipped with Adaptive Variable Suspension (AVS). These application rows are not interchangeable: the RWD row does not establish hybrid RWD fitment, and Platinum is listed here only in the RWD row. TRD Pro and other unlisted configurations are not claimed compatible. Verify cab, engine, drivetrain, trim and suspension equipment before ordering.
Included components and ride-height setup
- Two preassembled front Coilover 2.0 assemblies, 82128.9003: threaded front spring-perch adjustment. A numerical total front lift range is not specified here because the exact-kit page and linked instructions do not state one.
- One height-adjustment tool, ETCO 2.0
- Two front bump-stop spacers, 8001559: D4232 specifies installing the supplied 6mm spacers on both sides.
Contents follow Eibach D4232. This is a front pair, not a complete front-and-rear lift system; rear shocks and rear springs are not included.
The shipped front setting is intended to level with the original rear spring. Eibach states that additional preload is needed to level with an Eibach rear spring. Trim, cab/bed configuration and vehicle weight affect final ride height.
Important adjustment limit
Do not exceed a spring collar height of 77mm, measured from the bottom of the collar to the base exactly as illustrated on page 8 of D4232. Eibach warns that exceeding this limit damages the shock and suspension. This collar measurement is not the amount of vehicle lift. The instructions state that one full collar turn changes ride height by approximately 1/8 inch.
Construction and features

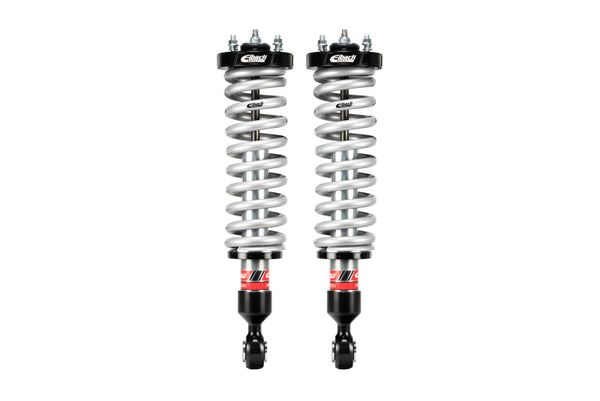

- Preassembled direct-replacement front coilovers, sold as a pair

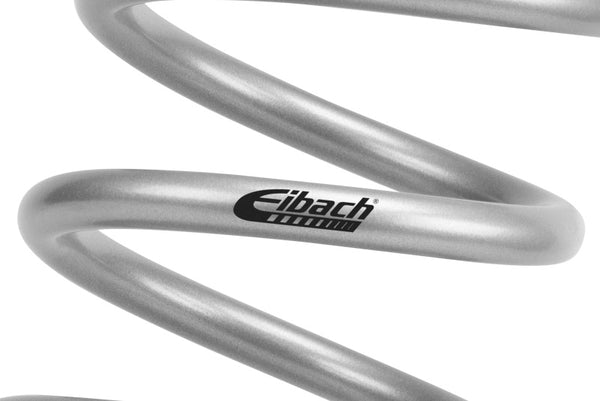

- Threaded adjustable spring perches with ERO off-road race springs
- Anodized 6061-T6 billet aluminum mounts

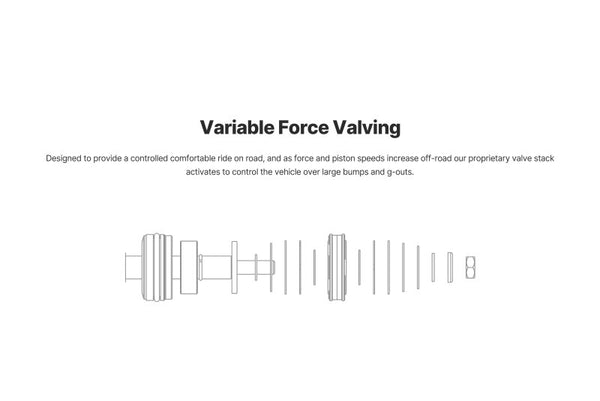

- 46mm pistons, nitrogen-filled monotube construction and variable-force valving
- Individually dyno-tested dampers and cycle-tested heavy-duty bushings
- Engineered, tested and manufactured by Eibach in the USA
Installation and warranty
Follow the complete D4232 instructions, including bump-stop spacers, hardware, clearance and post-installation checks. Eibach lists a two-year warranty subject to its terms and does not guarantee fitment, height or warranty coverage on unlisted applications.
