Eibach PRO-TRUCK-LIFT Stage 2R
E86-82-096-02-22 combines preassembled PRO-TRUCK COILOVER 2.0 front assemblies, rear external-reservoir Sport shocks and rear PRO-LIFT-KIT springs. Threaded front spring perches allow ride-height fine tuning, while the matched damper package provides control for road and trail driving.
Verified vehicle applications
2022–2026 Toyota Tundra XK70 Crew Cab, limited to these separate Eibach application rows:
- 3.4L 4WD: SR, SR5, Limited and TRD Offroad
- 3.4L i-FORCE MAX Hybrid 4WD: SR, SR5, Limited and TRD Offroad, as listed by Eibach
- 3.4L RWD: SR, SR5, Limited and Platinum
Excludes Adaptive Variable Suspension (AVS). Do not combine the separate rows to infer additional applications. Platinum is listed only with RWD; the hybrid row is 4WD. TRD Pro, 1794 Edition, Capstone and other unlisted configurations are not claimed compatible. The complete Stage 2R page does not list a load-leveling rear air-suspension application; front-only coilover fitment does not establish complete-kit compatibility.

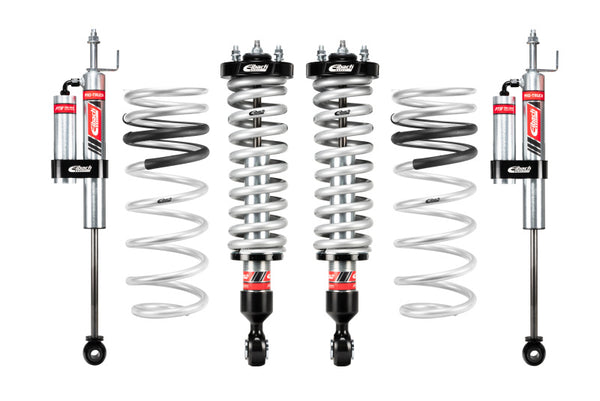

Included components and lift information
- Front Coilover 2.0 pair: height-adjustable preassembled front spring-and-damper assemblies. Linked front-subkit instructions D4232 identify two 82128.9003 assemblies, one ETCO 2.0 adjustment tool and two 8001559 front bump-stop spacers, specified as 6mm spacers.
- Rear external-reservoir Sport shocks: these dampers control suspension movement, not create lift. Linked individual-shock instructions D4231 identify E60-82-096-02-01 / 82128.8004RR, with one 84-2015 boot and one H70065500 tie per individual shock package.

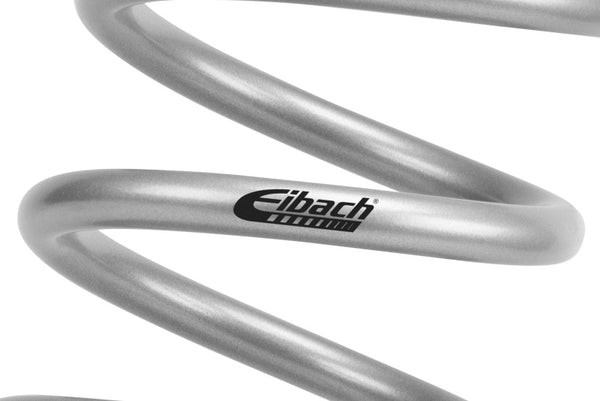

- Rear PRO-LIFT-KIT springs: linked rear-subkit instructions D4141 identify E30-82-096-01-02, containing two F31-82-096-01-RA springs. These springs provide the rear lift; the instructions do not specify a numerical rear lift height.
The exact Stage 2R page confirms the front pair, rear reservoir shocks and rear springs. The linked subkit and individual-shock documents identify those components but are not a single complete Stage 2R packing list. No numerical total front or rear lift range is claimed here.
Front ride-height adjustment
The shipped front setting is intended to level with the original rear spring. Eibach states that additional preload is needed to level with an Eibach rear spring, so account for the rear springs supplied in this kit. Trim and cab/bed configuration affect final height.
D4232 limits spring collar height to 77mm, measured from the bottom of the collar to the base as illustrated on page 8. This is a collar measurement, not vehicle lift height. Exceeding it can damage the shock and suspension. Each full collar turn changes ride height by approximately 1/8 inch.
Construction
- Height-adjustable front coilovers and rear external-reservoir dampers
- Anodized 6061-T6 billet aluminum coilover mounts
- 46mm pistons and nitrogen-filled monotube variable-force damping
- Individually dyno-tested dampers and cycle-tested heavy-duty bushings
- Engineered, tested and manufactured by Eibach in the USA
- Two-year warranty, subject to Eibach terms
Installation notes
D4141 warns that the rear lift springs must not be used with OE shocks: extended-travel shocks are required to prevent suspension damage. Reuse the factory bottom tube sleeves and retain the specified original spring isolators. Follow D4231 for rear reservoir orientation: toward the top and pointing toward the rear of the vehicle, with the alignment tab correctly installed. Installing without the alignment tab can damage the shock and void warranty.
Use the complete instructions for installation, torque, alignment and clearance checks. D4231 calls for a fastener-torque and clearance recheck after 10 miles. Installation should be performed by a qualified suspension mechanic.
