Eibach PRO-TRUCK COILOVER 2.0 Front Pair
Eibach E86-82-007-01-20 combines preassembled front coilovers with threaded spring-perch adjustment for compatible Toyota Tacoma trucks. The matched spring-and-damper assemblies provide ride-height fine tuning and variable-force damping for road and trail use.
Exact vehicle fitment
- 2005–2015 Toyota Tacoma 4WD, six-lug wheel models only
- 2016–2023 Toyota Tacoma N300, 3.5L V6, 2WD or 4WD, in Eibach's listed SR, SR5, TRD Sport, TRD Off-Road and Limited configurations
This listing does not claim compatibility with 2005–2015 2WD or five-lug trucks, X-Runner, 2016–2023 four-cylinder trucks, TRD Pro or other unlisted applications. Confirm the exact year, engine, drivetrain and trim before ordering.
Included components and ride-height adjustment

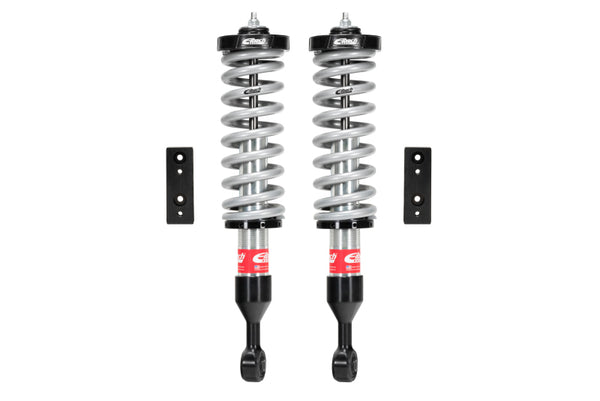

- Two preassembled front Coilover 2.0 assemblies, 82113.9003: threaded spring-perch ride-height adjustment. The exact-kit product page and linked instructions do not state a numerical total lift range.
- One anti-roll-bar relocation bracket kit, 8001192.1
- One height-adjustment tool, ETCO 2.0
Contents follow Eibach's D3855 Rev 2 instructions. This is a front pair, not a front-and-rear suspension kit; rear shocks and rear lift components are not included.
Important adjustment limit
Do not exceed a spring collar height of 99mm, measured from the bottom of the collar to the base as illustrated on page 7 of D3855. Eibach warns that exceeding this limit will damage the shock and suspension. This measurement is a collar-setting limit, not the amount of vehicle lift.
Eibach states that each full collar turn changes ride height by approximately 1/8 inch. Actual height depends on the vehicle and load; use the complete instructions rather than assuming a universal lift setting.
Construction and features
- Preassembled direct-replacement front coilovers, sold as a pair

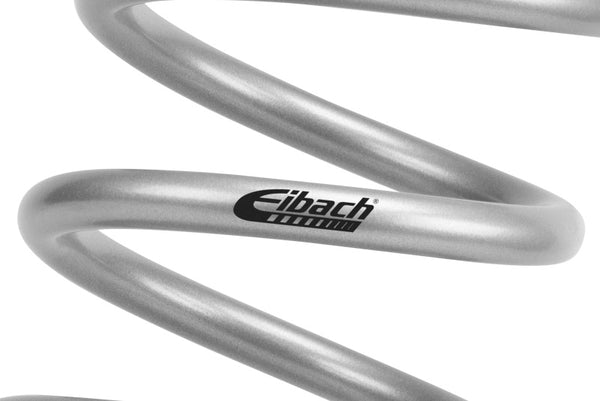

- Adjustable threaded spring perches with ERO off-road race springs
- Anodized 6061-T6 billet aluminum mounts

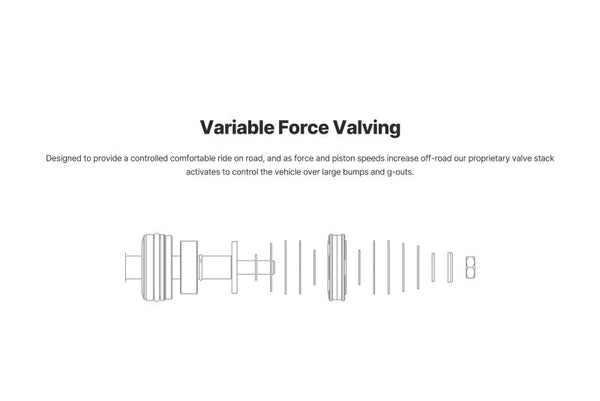

- 46mm pistons, nitrogen-filled monotube design and variable-force valving
- Individually dyno-tested dampers and cycle-tested heavy-duty bushings
- Engineered, tested and manufactured by Eibach in the USA
Installation and warranty
Follow the complete Eibach instructions for sway-bar relocation, mounting, torque specifications and post-installation checks. Eibach lists a two-year warranty subject to its terms and does not guarantee fitment, height or warranty coverage for unlisted applications.
