Eibach PRO-TRUCK COILOVER 2.0 Front Pair

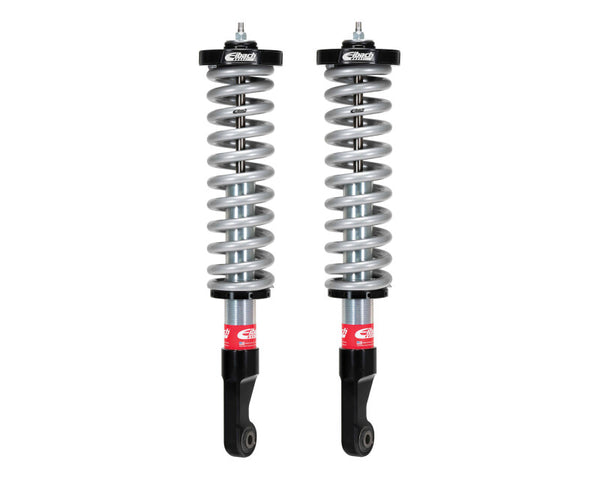

E86-82-067-01-20 replaces the front spring-and-damper assemblies with a preassembled pair of Eibach Coilover 2.0 units. Threaded spring perches allow ride-height fine tuning for vehicle load, while extended-travel monotube dampers with variable-force valving provide control on the road and compliance on the trail.
Vehicle fitment
Eibach's current exact-part application rows list:
- 2007–2015 Toyota Tundra 2WD and 4WD
- 2016–2021 Toyota Tundra 2WD and 4WD
The manufacturer's page heading still refers to 2007–2019, but its current application rows extend through 2021. Confirm your truck's exact configuration before ordering; the broad imported trim list is not treated as separate confirmation of special-package compatibility, including TRD Pro. Eibach does not guarantee fitment, height or warranty coverage on unlisted applications.
Included components and ride-height adjustment
- Two preassembled front Coilover 2.0 assemblies, 82120.9003: threaded spring-perch height adjustment. The exact product information and D3856 instructions do not state a numerical total front lift range.
- One height-adjustment tool, ETCO 2.0
Contents follow D3856 Rev 1. Sold as a front pair, not a four-shock kit. Rear shocks, rear springs and rear lift components are not listed in this package.
Maximum spring collar height: 95mm, measured from the bottom of the collar to the base as illustrated on page 7 of D3856. This is an adjustment measurement, not the amount of vehicle lift. Eibach warns that exceeding the limit can damage the shock and suspension. One full collar turn changes ride height by approximately 1/8 inch.
Construction and features
- Preassembled, factory direct-replacement front coilovers

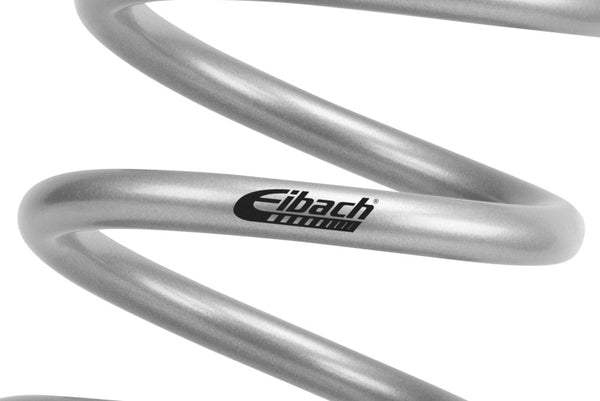

- Threaded adjustable spring perches with ERO off-road race springs
- Anodized 6061-T6 billet aluminum mounts

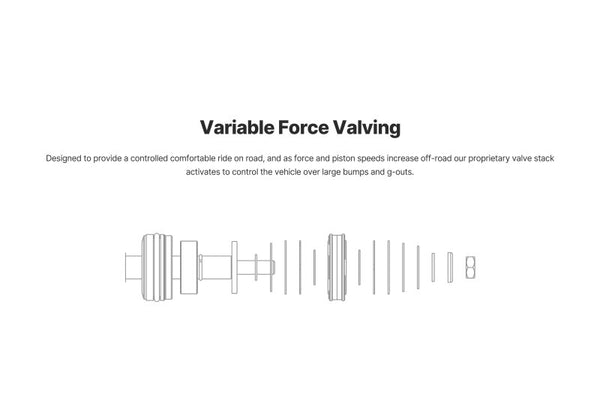

- 46mm pistons and nitrogen-filled monotube variable-force damping
- Individually dyno-tested dampers for matched performance
- Cycle-tested heavy-duty bushing system
- Engineered, tested and manufactured by Eibach in the USA
Installation and warranty
Follow the complete D3856 instructions for safe removal, installation, supplied upper flange nuts, original mounting hardware reuse, fastener torque and sway-bar end-link alignment. Eibach specifies installation by qualified mechanics experienced with suspension components. Do not substitute collar measurements or settings from another coilover kit.
Covered by Eibach's two-year warranty, subject to its terms.
Eibach exact-part applications and features
D3856 installation instructions and adjustment limit
