Eibach PRO-TRUCK-LIFT Stage 2R

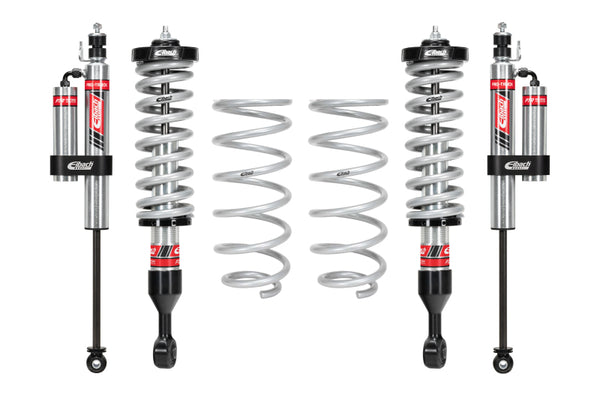

E86-82-071-05-22 combines a front Coilover 2.0 pair, rear external-reservoir Sport shocks and rear PRO-LIFT-KIT springs. Threaded front spring perches allow height fine tuning, while the rear reservoir dampers provide off-road damping performance.
Vehicle fitment
2010–2024 Toyota 4Runner 4WD and RWD/2WD. Eibach states that this system works with KDSS-equipped vehicles. That does not establish X-REAS conversion requirements or independently confirm every special suspension package, including TRD Pro. Confirm exact vehicle equipment before ordering. Eibach does not guarantee fitment, height or warranty coverage on unlisted applications.
Included components and lift information
- Front Coilover 2.0 pair: the linked front-subkit instructions D3880 identify two 82117.9003 assemblies and one ETCO 2.0 height-adjustment tool. A numerical total front lift range is not specified in the reviewed exact-kit information.
- Rear PRO-LIFT-KIT springs: linked rear-subkit instructions D3608 identify two F31-82-071-01-RA springs under E30-82-071-01-02. A numerical rear spring lift height is not specified in the reviewed instructions.
- Rear reservoir shocks: linked individual-shock instructions D3956 identify side-specific 82117.8004RR-L/R dampers under E60-82-071-03-01 and E60-82-071-04-01. Each individual package lists one shock, one 84-2024 boot and one H70065500 tie. These are rear damping components, not lift-producing springs.
The exact complete-kit page confirms the front pair, rear reservoir shocks and rear springs. The linked subkit and individual-shock documents identify their components but are not a single complete Stage 2R packing list. D3608 carries an older 2010–2017 header; the current complete-kit application rows extend through 2024. No HD spring load requirement or numerical lift range from another system is substituted here.
Front height adjustment
The shipped front setting is intended to level with the original rear spring. Eibach states that additional preload is required to level with an Eibach rear spring, so account for the rear springs supplied in this system.
D3880 limits spring collar height to 99mm, measured from the bottom of the collar to the base as illustrated on page 8. This is a collar measurement, not the amount of vehicle lift. Exceeding it can damage the shock and suspension. Each full collar turn changes ride height by approximately 1/8 inch.
Construction and features
- Height-adjustable front Coilover 2.0 assemblies and rear external-reservoir shocks
- Anodized 6061-T6 billet aluminum coilover mounts
- 46mm pistons and nitrogen-filled monotube variable-force damping
- Individually dyno-tested dampers and cycle-tested heavy-duty bushings
- Engineered, tested and manufactured by Eibach in the USA
- Two-year warranty, subject to Eibach terms
Important installation requirements

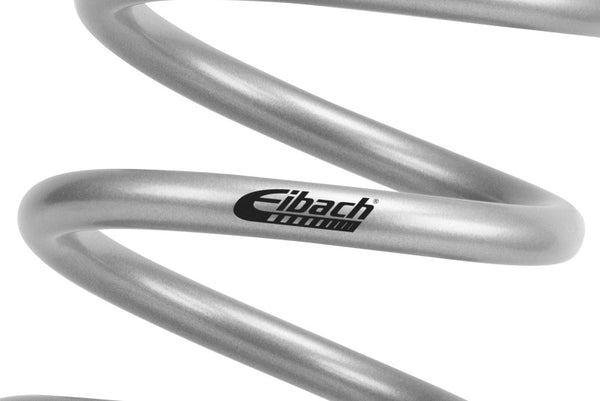

D3608 warns that the rear lift springs must not be used with OE shocks: extended-travel shocks are required to avoid suspension damage. Install springs with the Eibach logo upright and retain the specified original spring isolators, dampers and tubing.
D3956 requires mounting the rear reservoirs toward the top and pointing toward the axle. Install the correct left/right shock and locating tab, identified by L/R markings, to orient the reservoir away from the frame. Incorrect side placement can cause fitment problems and shock damage.
Follow the complete instructions for installation, torque, alignment and clearance checks. Recheck rear shock installation, fastener torque and clearance after 10 miles as directed by D3956. Installation should be performed by a qualified suspension mechanic.
