Eibach PRO-TRUCK-LIFT Stage 1 Kit
Eibach E80-82-007-01-22 combines front lift springs with front and rear PRO-TRUCK SPORT shocks for compatible 2005–2015 Tacoma six-lug trucks. Clip-adjustable front spring seats and matched spring-and-damper tuning provide ride-height setup options for road and trail use.
Exact vehicle fitment
- 2005–2015 Toyota Tacoma 4WD, six-lug wheel models only
- 2005–2015 Toyota Tacoma 2WD PreRunner, six-lug wheel models only
The current product page lists six-lug 2WD and 4WD; D4085 identifies the 2WD application as PreRunner. Five-lug trucks are not covered. Do not rely on the imported broad trim list as a fitment guarantee; X-Runner compatibility is not claimed.

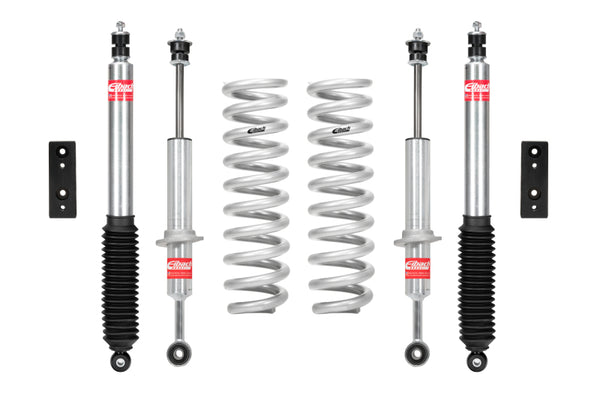

Included components and lift

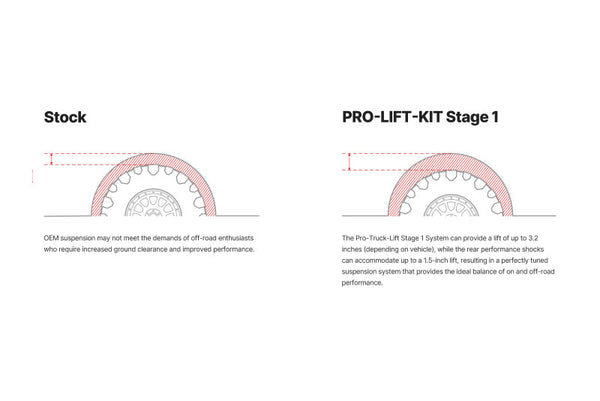

- Two front lift springs, F31-82-007-03-FA, used with the supplied front dampers. Eibach's D4085 chart shows average front lift values of 2.5 inches and 3.2 inches for its illustrated settings; consult the chart for the correct spring-seat configuration. Upper settings marked for extra weight must not be treated as unrestricted lift positions.
- Two front shocks, 82110.8003: clip-adjustable spring-seat dampers
- Two rear shocks, 82110.8004: replacement rear dampers, not rear lift-producing components
- One stabilizer-bar relocation kit, 8001192.1: brackets and hardware, not a replacement sway bar
- Two retaining-ring kits, 84-1804.0
- Two nylon cable ties, H70065500
Contents follow D4085 REV1, with the relocation kit clarified by D3714. Rear leaf springs, add-a-leaves and lift blocks are not listed in the packing list. Rear shocks alone do not raise the vehicle.
Assembly and installation
This is an unassembled spring-and-shock package, not the preassembled Stage 1 Plus kit. Eibach instructs installers to transfer the original front spring perches to the PRO-TRUCK SPORT dampers. Actual lift varies with vehicle configuration and weight; follow the complete ride-height chart rather than assuming one lift height for every truck.
Follow Eibach's instructions for mounting hardware, sway-bar relocation, rear-shock orientation, component clearances and post-installation fastener checks.
Features and warranty
- Matched springs and shocks designed for increased travel and performance
- Eibach off-road race spring technology and OE quality standards
- Individually tested shocks
- Made in the USA
Eibach lists a two-year warranty subject to its terms and does not guarantee fitment, height or warranty coverage on unlisted applications.
Eibach exact-kit application and features
D4085 contents, front lift chart and installation instructions
D3714 stabilizer-bar relocation instructions
