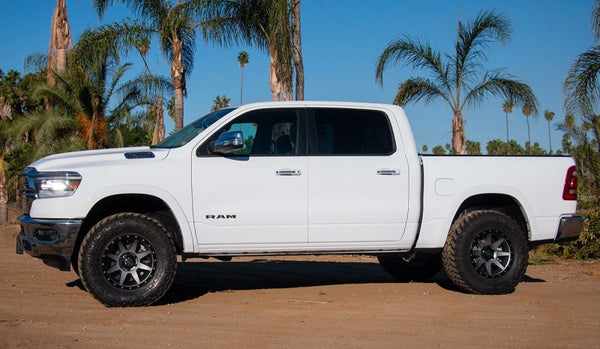

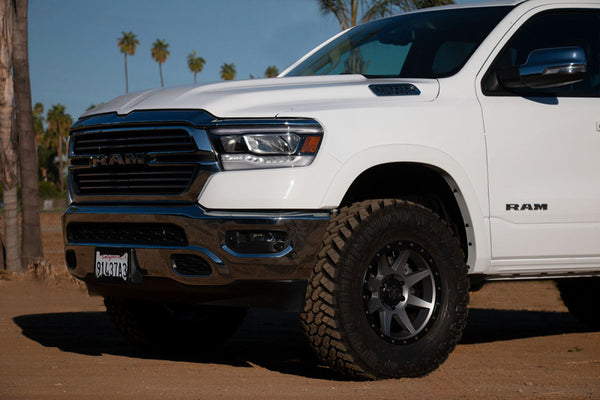

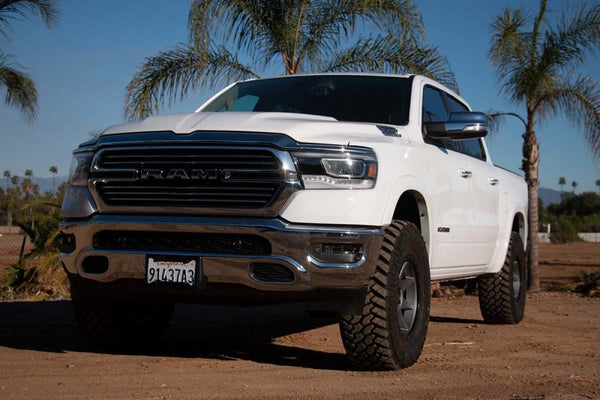

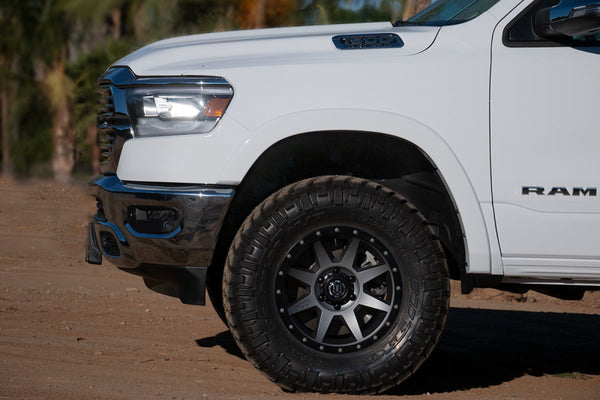

ICON 19-23 Ram 1500 2-3in Stage 2 Suspension System w/ Tubular Uca

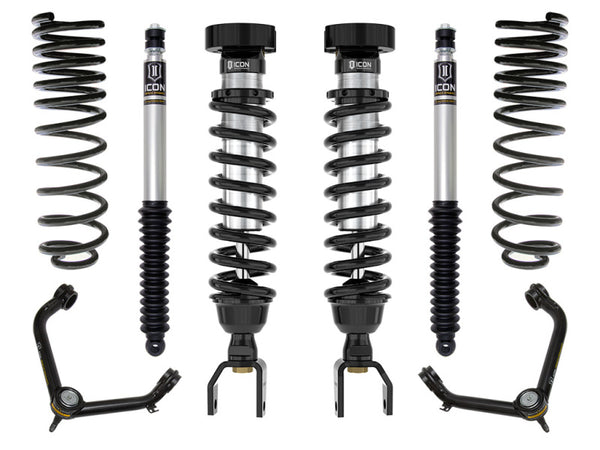

ICON Vehicle Dynamics 2019-2026 Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers, are also height adjustable for 2-3” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations and their longer than stock length improves performance by increasing front wheel travel. Tubular Delta Joint upper control arms not only add strength and durability, but help retain factory alignment specs, increasing caster over stock and allow proper wheel alignment at the lift height this system provides. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 1.5” of rear lift height over stock allows a for level stance front to rear. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2026 Ram 1500 Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON 2019-2026 Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON's primary focus is to increase wheel travel and damping ability, translating to outstanding control and ride quality. APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.

• Tubular Upper Control Arms with Delta Joint ball joints for added strength, durability, and alignment spec range
• Dual rate rear coil springs improve performance and ride quality while providing 1.5" of rear lift
• Corrosion resistant, 2.5” diameter, CAD plated coilover shock bodies with 7/8" shafts
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Increased wheel travel and ride quality over stock with no change in towing capacity
• 2.0 Aluminum Series rear internal reservoir shocks with 5/8" polished shafts
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• FK rod end bearings for extended longevity and minimal deflection
• Adjustable coilovers yield 2-3" of front lift height over stock
• 6061 Aircraft grade aluminum CNC machined components

Fitment:
Ram 1500 Big Horn 2019
Ram 1500 Big Horn 2020
Ram 1500 Big Horn 2021
Ram 1500 Big Horn 2022
Ram 1500 Big Horn 2023
Ram 1500 Big Horn 2024
Ram 1500 Big Horn 2025
Ram 1500 Big Horn 2026
Ram 1500 Express 2026
Ram 1500 HFE 2019
Ram 1500 HFE 2020
Ram 1500 HFE 2021
Ram 1500 HFE 2022
Ram 1500 HFE 2023
Ram 1500 HFE 2024
Ram 1500 Laramie 2019
Ram 1500 Laramie 2020
Ram 1500 Laramie 2021
Ram 1500 Laramie 2022
Ram 1500 Laramie 2023
Ram 1500 Laramie 2026
Ram 1500 Laramie Longhorn 2019
Ram 1500 Laramie Longhorn 2020
Ram 1500 Laramie Longhorn 2021
Ram 1500 Limited 2019
Ram 1500 Limited 2020
Ram 1500 Limited 2021
Ram 1500 Limited 2022
Ram 1500 Limited 2023
Ram 1500 Limited 2024
Ram 1500 Limited Longhorn 2021
Ram 1500 Limited Longhorn 2022
Ram 1500 Limited Longhorn 2023
Ram 1500 Limited Longhorn 2024
Ram 1500 Lone Star 2019
Ram 1500 Lone Star 2020
Ram 1500 Lone Star 2021
Ram 1500 Lone Star 2022
Ram 1500 Lone Star 2023
Ram 1500 Lone Star 2024
Ram 1500 Lone Star 2025
Ram 1500 Lone Star 2026
Ram 1500 Longhorn 2021
Ram 1500 Rebel 2019
Ram 1500 Rebel 2020
Ram 1500 Rebel 2021
Ram 1500 Rebel 2022
Ram 1500 Rebel 2023
Ram 1500 Rebel 2024
Ram 1500 Rebel 2026
Ram 1500 Special Service 2020
Ram 1500 Special Service 2021
Ram 1500 Special Service 2025
Ram 1500 Special Service 2026
Ram 1500 Tradesman 2019
Ram 1500 Tradesman 2020
Ram 1500 Tradesman 2021
Ram 1500 Tradesman 2022
Ram 1500 Tradesman 2023
Ram 1500 Tradesman 2024
Ram 1500 Tradesman 2025
Ram 1500 Tradesman 2026
Ram 1500 Tradesman HFE 2025
Ram 1500 Warlock 2026

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
