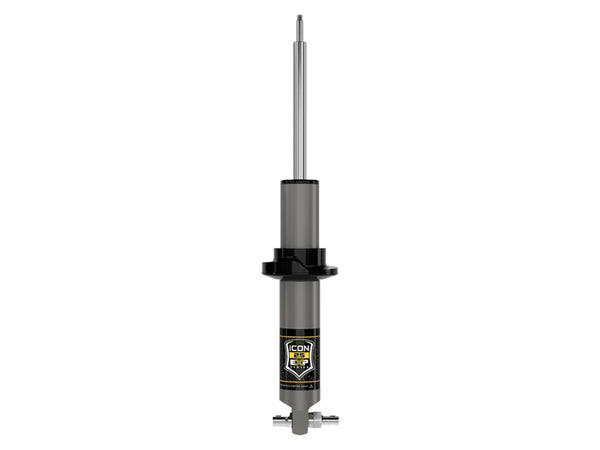

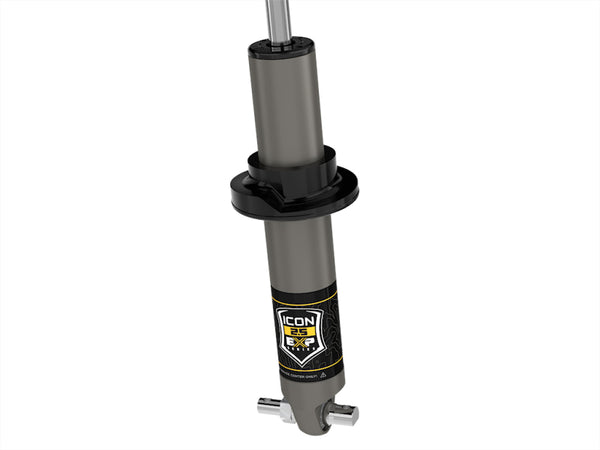

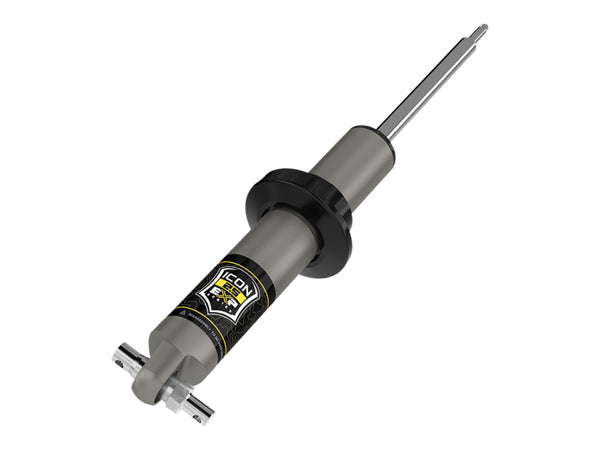

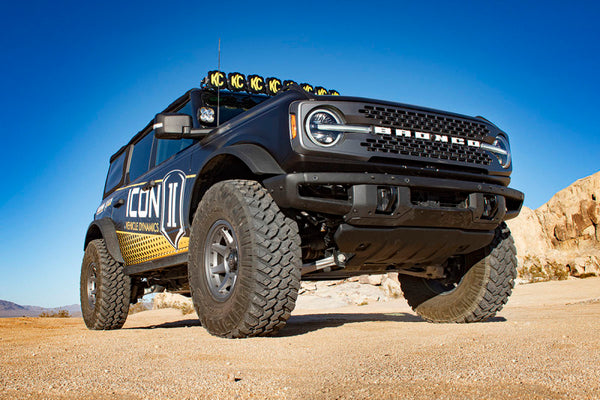

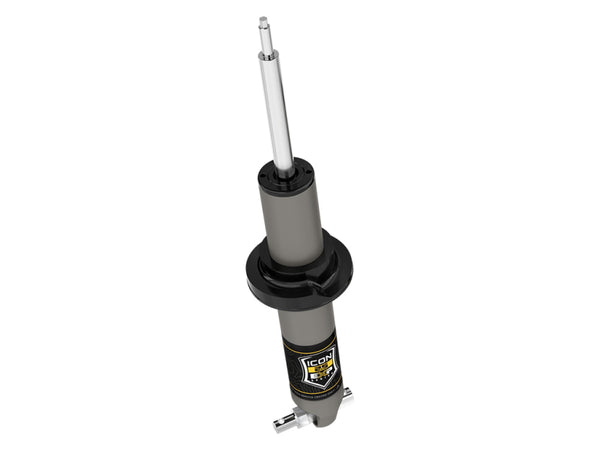

ICON 2021+ Ford Bronco Hoss 1.0 Front EXP Coilover 2.5in

EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Bronco in conjunction with their stock coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON. Based on ICON’s 2.5 Series, these EXP shocks bridge the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance, and maximum travel, all in one economical package. APPLICATION NOTE #266: Due to increased wheel travel and lift height provided by these coilovers, ICON upper control arms with Delta Joint Pro, part numbers 48400DJ or 48500DJ, are recommended. Other aftermarket front upper control arms may not be compatible and it is the duty of the installer to verify fitment. Failure to cycle suspension and check for ball joint bind issues may lead to component failure and/or injury.

• One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
• Adjustable ride heights from 1.375-3” of front lift over stock with the use of snap ring
• Vehicle specific design for 2021-2026 Ford Bronco with HOSS 1.0 Suspension Package
• PTFE lined spherical bearing for extended longevity and minimal deflection
• CNC machined 6061 aluminum components with a black anodized finish
• 100% Bolt-on - no cutting or welding necessary for installation
• Vehicle specific tuned for superior shock damping and control
• 2.5 Aluminum Series Shock with Internal Reservoir
• High strength alloy CNC machined lower bar pin
• Utilizes factory coil and coil hardware
• Fully rebuildable and re-tunable

Fitment:
Ford Bronco Base 2021
Ford Bronco Base 2022
Ford Bronco Base 2023
Ford Bronco Base 2025
Ford Bronco Base 2026
Ford Bronco Big Bend 2021
Ford Bronco Big Bend 2022
Ford Bronco Big Bend 2023
Ford Bronco Big Bend 2024
Ford Bronco Big Bend 2025
Ford Bronco Big Bend 2026
Ford Bronco Black Diamond 2021
Ford Bronco Black Diamond 2022
Ford Bronco Black Diamond 2023
Ford Bronco Black Diamond 2024
Ford Bronco Outer Banks 2021
Ford Bronco Outer Banks 2022
Ford Bronco Outer Banks 2023
Ford Bronco Outer Banks 2024
Ford Bronco Outer Banks 2025
Ford Bronco Outer Banks 2026

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
