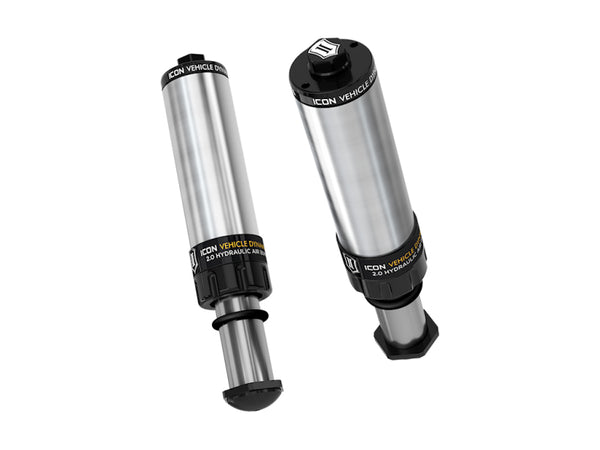

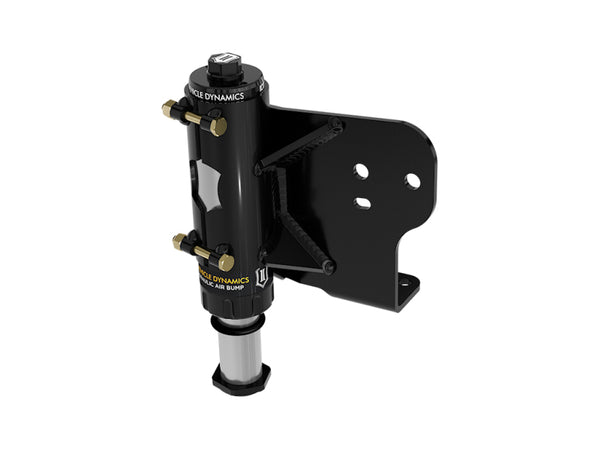

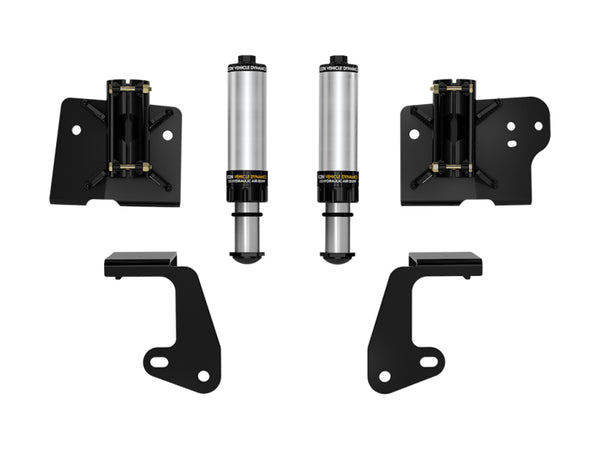

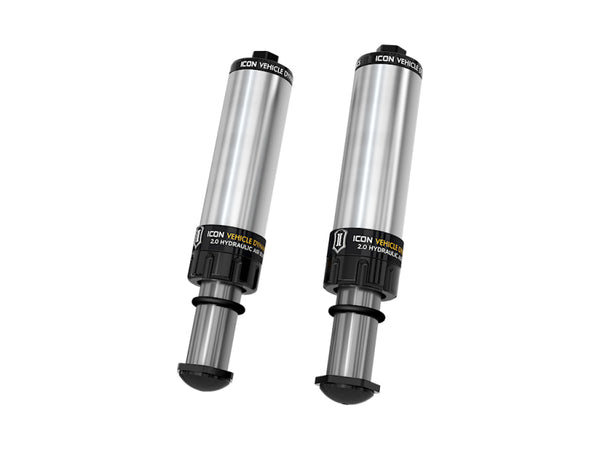

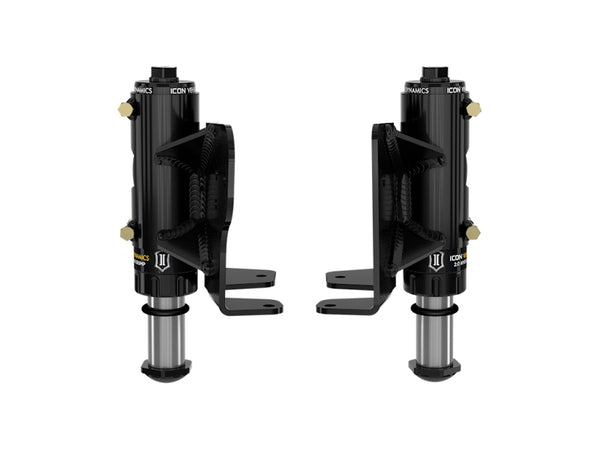

ICON 2022+ Toyota Tundra Rear Hydraulic Bump Stop Kit

While the factory rear bump stops do a satisfactory job of absorbing impacts on a street driven truck, ICON found that there was much room for improvement during spirited driving in rough, off-road terrain. The ICON Vehicle Dynamics 2022-2026 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick. Like all ICON hydraulic bumps stops, these feature both velocity and position sensitive technology which means that as the shaft speed increases and moves through the travel, the force increases exponentially to provide excellent bottoming resistance that won’t negatively affect articulation. The ICON 2022-2026 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick. APPLICATION NOTE #393: Not compatible with ICON 6" Lift Performance Suspension System. For ICON 6" lift compatibility, use part number 56115.

• Position and velocity sensitive technology exponentially increases bottom-out resistance
• Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
• Vehicle specific bump stop tune to provide smooth engagement and best ride quality
• Fully reversible to factory configuration with no bed cutting required
• Multi stage CAD plated body for maximum corrosion resistance
• Heavy duty 1 ¼” CNC machined nitro steel shaft
• Double sealed high pressure Schrader valve
• Replaceable noise reducing striker pad
• Fully serviceable

Fitment:
Toyota Tundra 1794 Edition 2022
Toyota Tundra 1794 Edition 2023
Toyota Tundra 1794 Edition 2024
Toyota Tundra 1794 Edition 2025
Toyota Tundra 1794 Edition 2026
Toyota Tundra Capstone 2022
Toyota Tundra Capstone 2023
Toyota Tundra Capstone 2024
Toyota Tundra Capstone 2025
Toyota Tundra Capstone 2026
Toyota Tundra Limited 2022
Toyota Tundra Limited 2023
Toyota Tundra Limited 2024
Toyota Tundra Limited 2025
Toyota Tundra Limited 2026
Toyota Tundra Platinum 2022
Toyota Tundra Platinum 2023
Toyota Tundra Platinum 2024
Toyota Tundra Platinum 2025
Toyota Tundra Platinum 2026
Toyota Tundra SR 2022
Toyota Tundra SR 2023
Toyota Tundra SR 2024
Toyota Tundra SR 2025
Toyota Tundra SR 2026
Toyota Tundra SR5 2022
Toyota Tundra SR5 2023
Toyota Tundra SR5 2024
Toyota Tundra SR5 2025
Toyota Tundra SR5 2026
Toyota Tundra TRD Pro 2022
Toyota Tundra TRD Pro 2023
Toyota Tundra TRD Pro 2024
Toyota Tundra TRD Pro 2025
Toyota Tundra TRD Pro 2026

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
