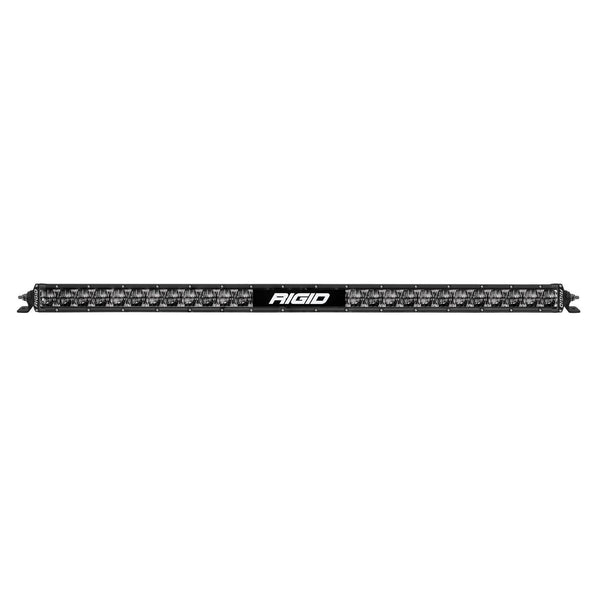

Off-road auxiliary lighting is one thing, but everyone knows that it is important to have lighting that is also safe and legal for on-road use. RIGID SAE Compliant street legal Fog Lights and Auxiliary High Beam Driving Lights allow them to be used on-the-road and not just off-road. RIGID created the proprietary output spread and height with the new patented optic system. The color temperature of these LEDs was carefully chosen to be a perfect range of pure daylight to penetrate the night for superior clarity on the road. These SAE Compliant lights project long-range high intensity light while drawing very little power and provide up to 50,000 useful hours. Available in many housing sizes, including SR-M, SR-Series single row, E-Series double row and D-Series pods. As an added function, the 20 and 30 Inch SR-Series SAE LED light bars offer a bold backlit RIGID branding plate. This feature can be run independently, or in tandem with the forward projecting LEDs. The low-profile optic design, advanced engineered heat sink, durability and the highest quality of strength of a polycarbonate lens is the ultimate solution for your street-legal lighting needs in North America. Own The Night with RIGIDs street legal LED lights.
- SAE J581 Compliant Street Legal Auxiliary High Beam LED Light
- IP68 Rated - Dust/Water Ingress
- Pressure Equalizing Vent
- Patented Optics
- Durable UV Polyester Powder Coat
- 50,000 Hour Lifespan
- Operating Temp -40 Deg F To +145 Deg F
- RoHS Compliant
- Limited Lifetime Warranty
- Legal For On Road and Off Road Use
- White LED Light
- Multi-Function With RIGID Branding Plate
- Integrated Thermal Management System
- 9-36 VDC Operation
- RFI/EMI Protection
- Impact Resistant Polycarbonate Lens
- High Grade Alloy Housing And Heatsink
- Over/Under Voltage Protection
Attributes:
- GTIN: 00849774030949
- Brand Name: RIGID Industries
- A = LUX at 10 Meters: 745.5
- Add-On: 131664, 131784, 1063, 1067, 1031, 30130, 30140, 30150
- Amp Draw: 12.9
- ASIN: No
- B = Beam Distance with 1 LUX: 273
- C = Beam Distance with .25 LUX: 546.1
- Field Horizontal (Measured in Degrees): 53.6
- Field Vertical (Measured in Degrees): 9.1
- Number of LEDs: 48
- Peak Beam Intensity (cd): 74,555
- Product Family: SAE
- Product Fits What: Universal Fit
- Product Weight: 6.7
- Raw Lumens: 14,148
- Watts: 180
- What's In The Package: Light, mounting hardware, harness
Extended Information:
- Country of Origin: Mexico
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 32.85 x 6 x 6 inches
- Weight: 12 lb
