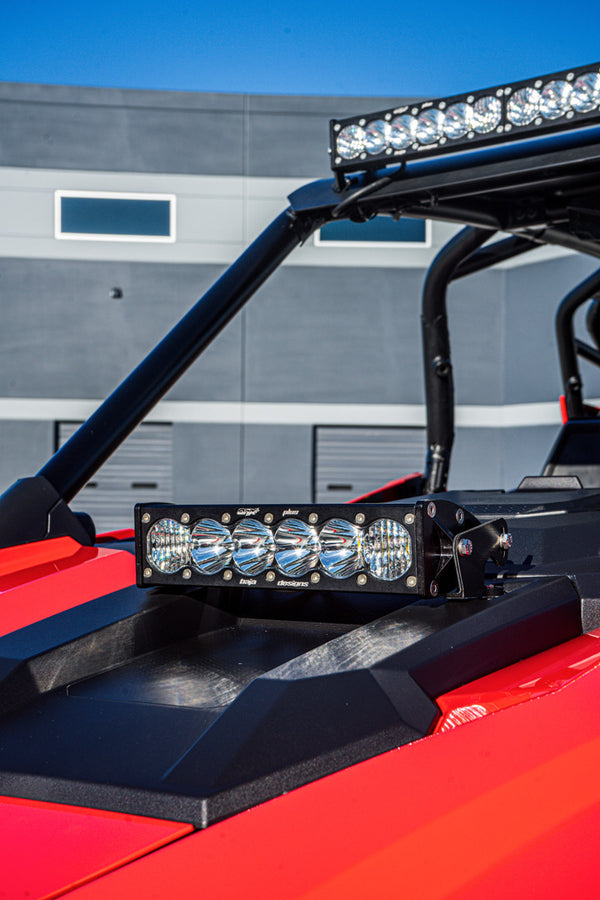

Baja Designs OnX6 Racer Edition 10-Inch Straight LED Light Bar, Clear Racer Spot, No Harness

The Baja Designs 411002 OnX6 Racer Edition is a 10-inch straight LED light bar with a clear Racer Spot beam. Developed for the manufacturer's TeamBD racers, it offers a race-focused auxiliary-light configuration in a compact bar with six forward-projecting LEDs. Racer Spot is the supplied pattern, not standard Spot or Driving/Combo.

Configuration and included contents

• One 10-inch straight OnX6 Racer Edition LED light bar
• Clear main lens, Racer Spot beam
• Six forward-projecting LEDs
• Black aircraft-grade aluminum housing with Mil-Spec hard anodize
• Billet-machined aluminum bezel
• Hardcoated polycarbonate lens
• Stainless-steel mounting brackets / hardware included
• Wiring harness not included
• Manufacturer part number / store SKU: 411002

The manufacturer uses OnX6 Straight Racer Edition in the descriptions and OnX6+ 10 Inch Racer Edition in the product-type attribute. Both refer to this exact part record; it is not the standard OnX6+ Driving/Combo model.

Whole-bar specifications

• Listed electrical draw: 63W / 5.25A
• Length: 10 inches
• Height: 2.69 inches
• Depth: 4.29 inches
• Light-bar weight: 4.25 lb
• Manufacturer-listed average rated life: 49,930 hours
• Built-in overvoltage protection

These ratings describe one complete bar, not each LED or the shipping package. This part record does not provide a lumen rating or input-voltage range, so neither is inferred from other OnX6 models.

Wiring and installation

Harness sold separately: The manufacturer specifically identifies 640119, its high-power harness with mode switch and two-light maximum, as the applicable wiring harness. Universal fitment does not establish a vehicle-specific bracket or plug-and-play connection. Confirm mounting clearance, electrical compatibility and control requirements, and follow the manufacturer's instructions.

The record also lists 613608 (splitter), 613609 (55-inch harness/splitter), 640094 (upfitter harness), 640115 (on/off harness) and 640163 (Hi Beam harness/splitter) as compatible products. Those accessory listings do not replace the explicit 640119 recommendation or establish particular built-in lighting modes. None is included.

Manufacturer marketing describes development for racing speeds above 110 mph. This is design context, not a guarantee of safe driving speed or visibility under all conditions. This auxiliary bar is not represented as a DOT headlight replacement.

Manufacturer-listed durability

• IP69K, described as waterproof up to 9 feet and pressure washable
• IK10 mechanical-impact compliance
• Exceeds MIL-STD810G testing, according to Baja Designs

Optional accessories

Separately listed covers and guards include 458410 (clear cover), 458411 (black rock guard) and 458412 (amber cover). Listed lens kits are 458113 (clear Spot), 458114 (clear Driving/Combo), 458115 (clear Wide Cornering), 458116 (amber Wide Cornering) and 458117 (amber Driving/Combo). A standard Spot replacement lens is not represented as retaining the supplied Racer Spot pattern. Anti-theft hardware 660302 and 660303 is also listed separately. These accessories are not included contents.

Manufacturer coverage

Baja Designs lists a 30-Day Money Back Satisfaction Guarantee and Limited Lifetime Warranty, subject to its terms.
